Home >> Toyota Truck >> 1997 >> Previa Van LE 2WD L4-2438cc 2.4L DOHC SC MFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Problem Symptom Table

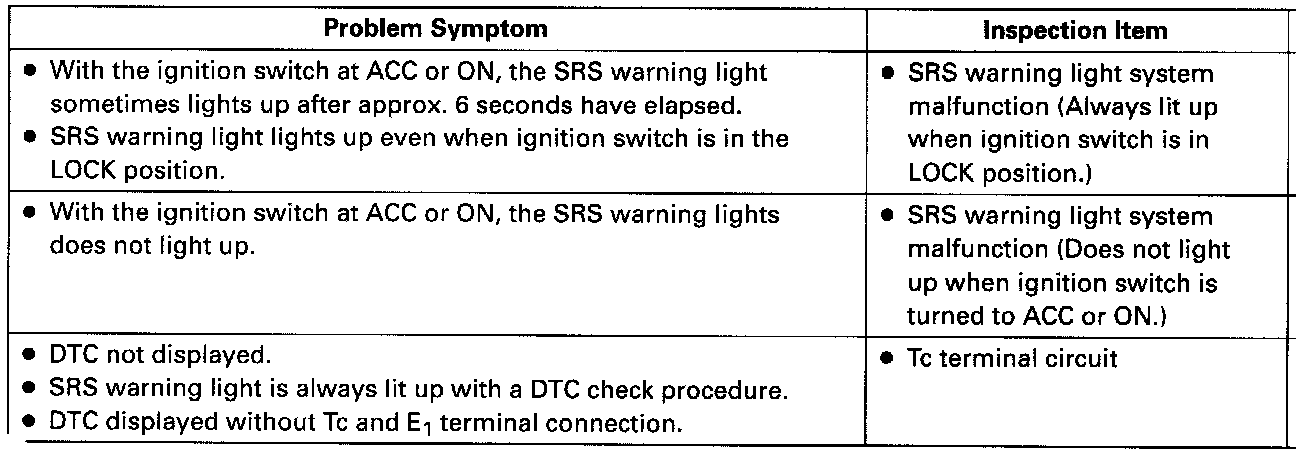

Problem Symptom Table

Problem Symptom Chart:





Proceed with troubleshooting of each circuit in the table.
