Manual Shifting Test

MANUAL SHIFTING TEST

HINT: With this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transmission.

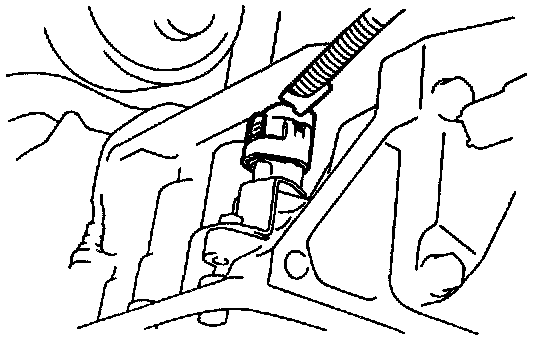

1. Disconnect solenoid wire.





2. Inspect manual driving operation.

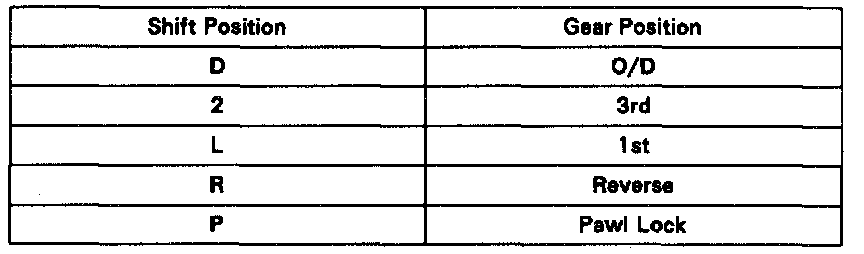

Check that the shift and gear positions correspond with the table above.

HINT: If the gear positions (L, 2 and D position) are difficult to distinguish. do the following road test.

- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test, the problem is in the transmission itself.
3. Connect solenoid wire.
4. Cancel out DTC.
