Home
>>
Toyota Truck
>>
1997
>>
Previa Van LE 2WD L4-2438cc 2.4L DOHC SC MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>

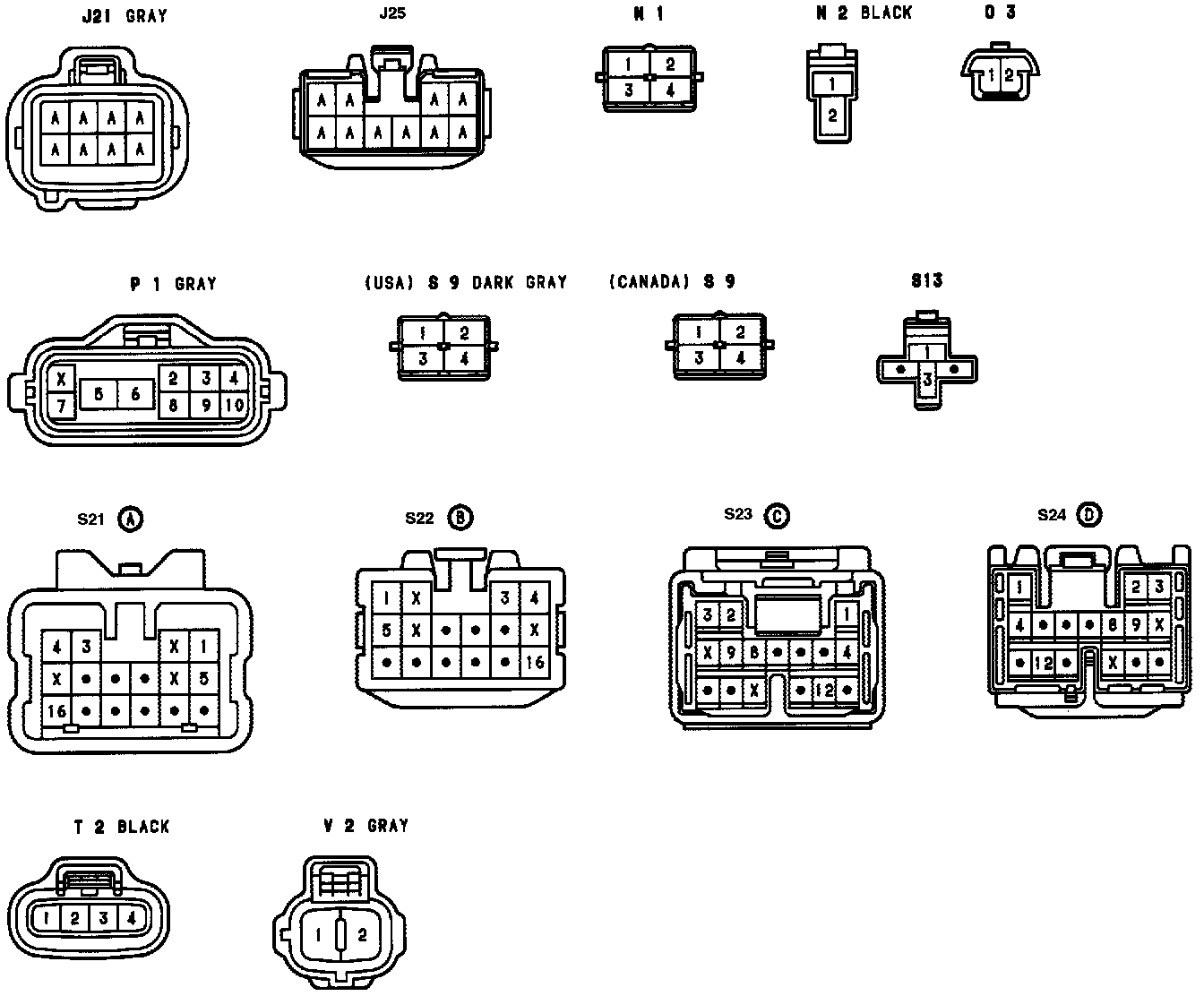

Connector Views
Connector Views
Electronically Controlled Transmission And A/T Indicator:
Electronically Controlled Transmission And A/T Indicator:
