Rear Three-Way Catalytic Converter Replacement

1. Remove three-way catalytic converter.
(a) Jack up the vehicle.
(b) Check that the converter is cool.

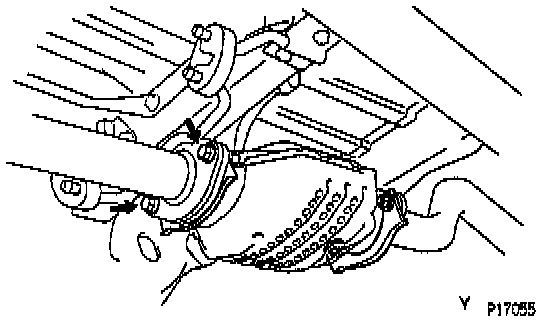

(c) Remove the 4 bolts and 2 brackets at the front and rear of the converter.
(d) Remove the converter and 2 gaskets.
2. Install three-way catalytic converter.
(a) Place new gaskets on the front and rear of the converter, and connect the converter to the exhaust pipes with the bolts and brackets.
(b) Torque the bolts.
Torque: 43 Nm (440 kg.cm, 32 ft. lbs.)
