A/C Idle Up Circuit

A/C Idle Up Circuit

CIRCUIT DESCRIPTION
When the air conditioning operates (increased engine Load),this Circuit switches the VSV ON and increases the amount of bypass air to increase the idle speed, thus maintaining driveability.

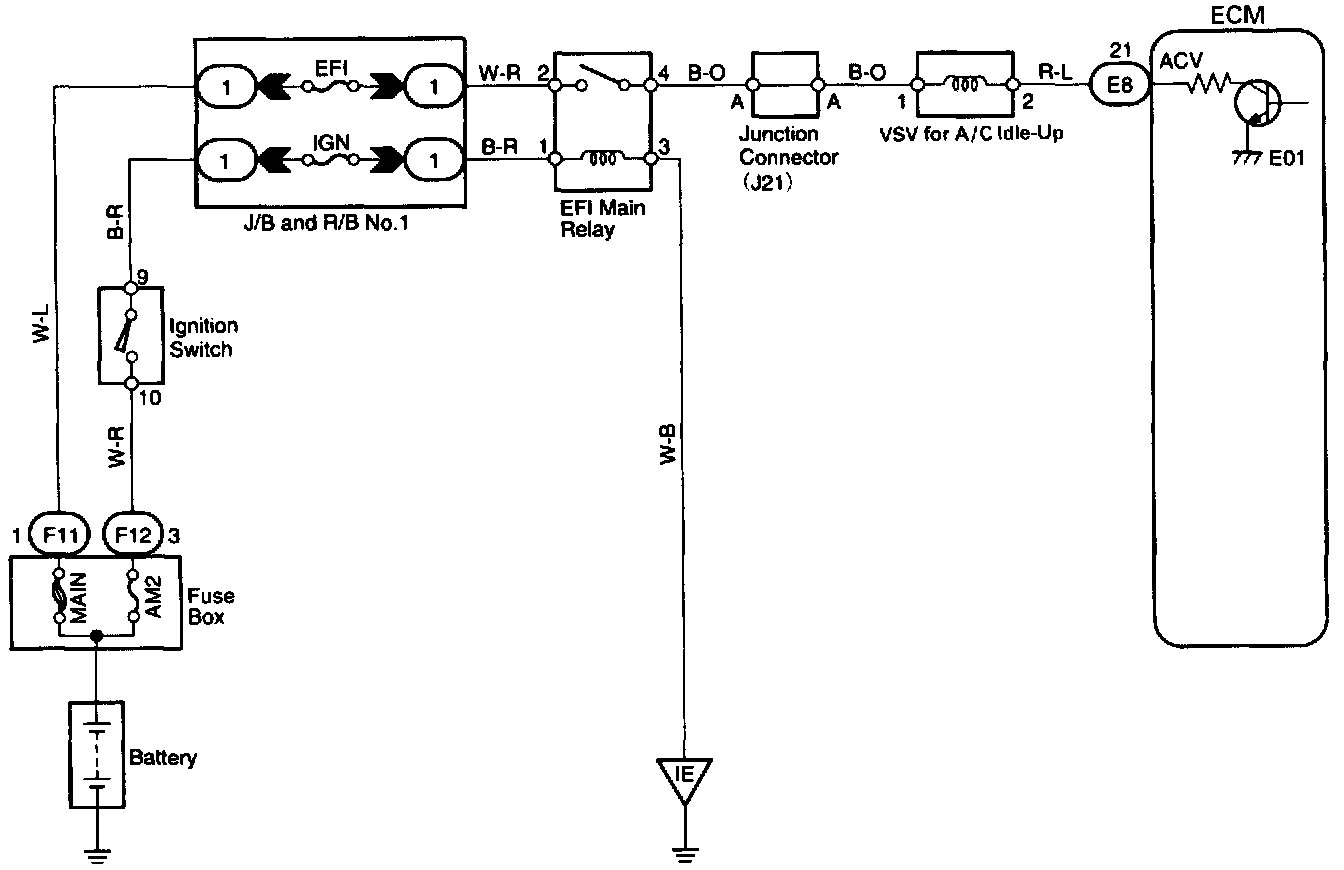

WIRING DIAGRAM

INSPECTION PROCEDURE

Step 1:

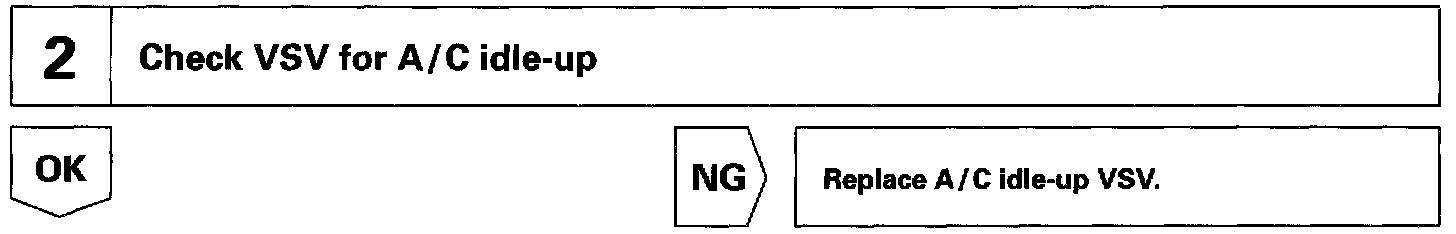

Step 2:

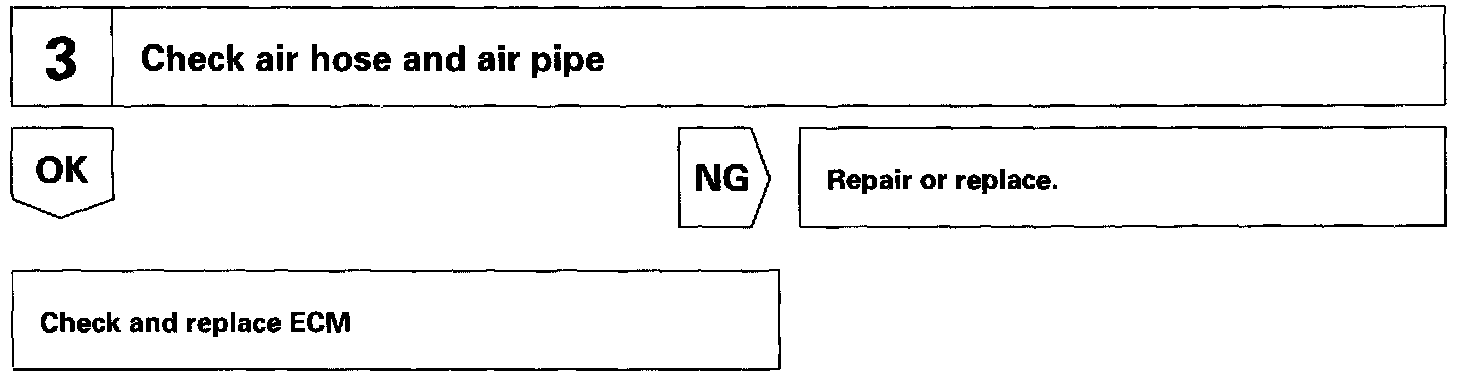

Step 3:

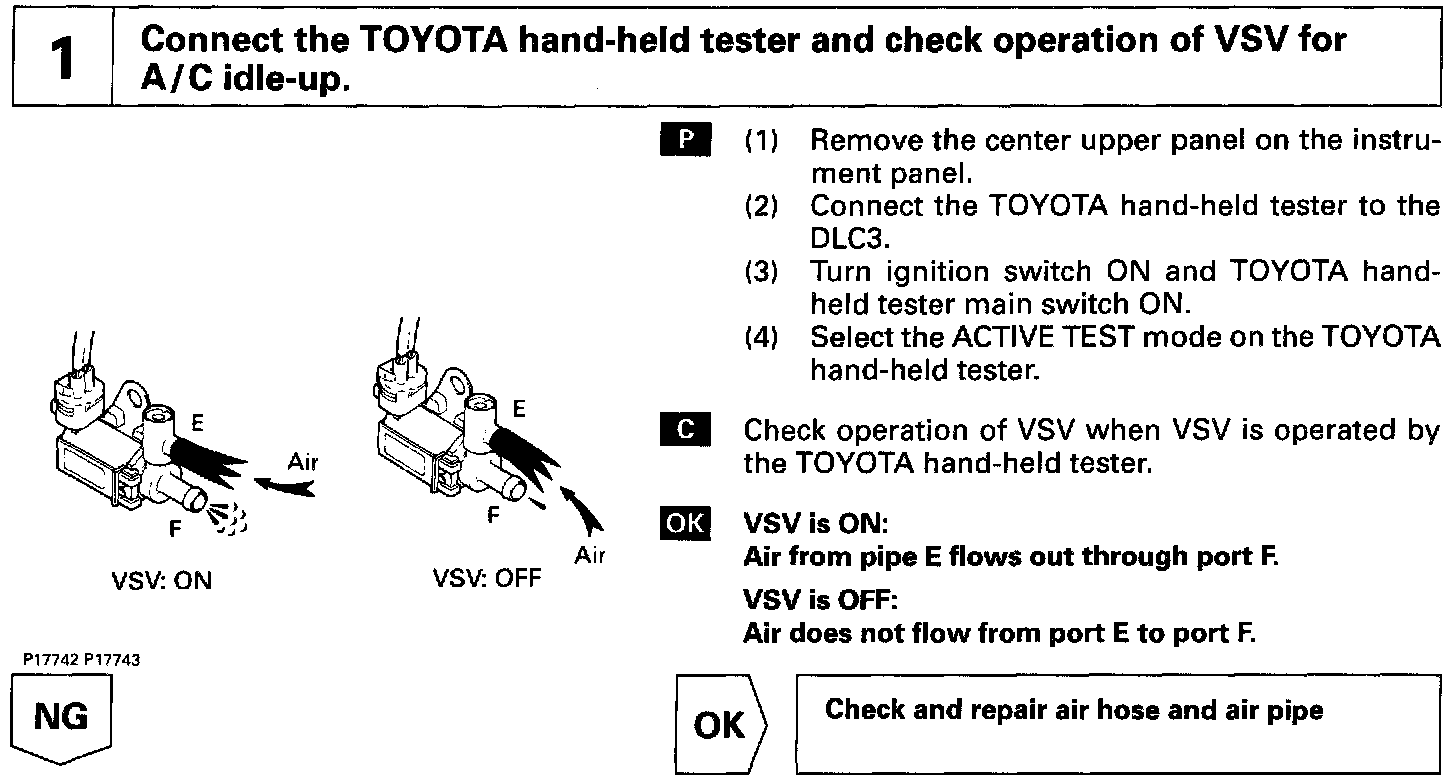

TOYOTA hand-held tester

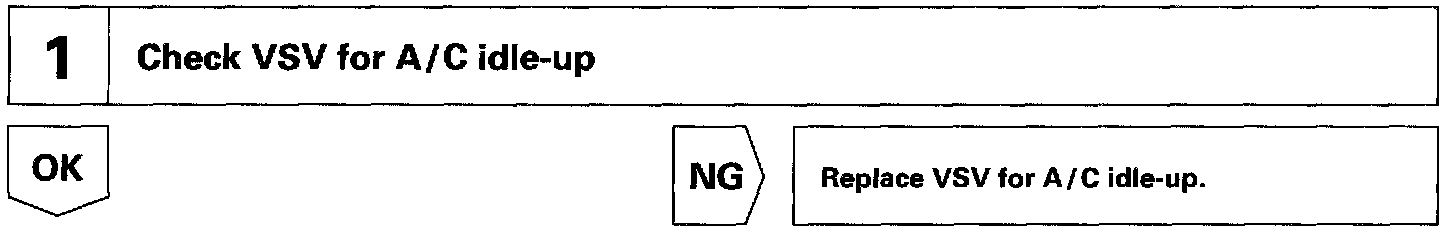

Step 1:

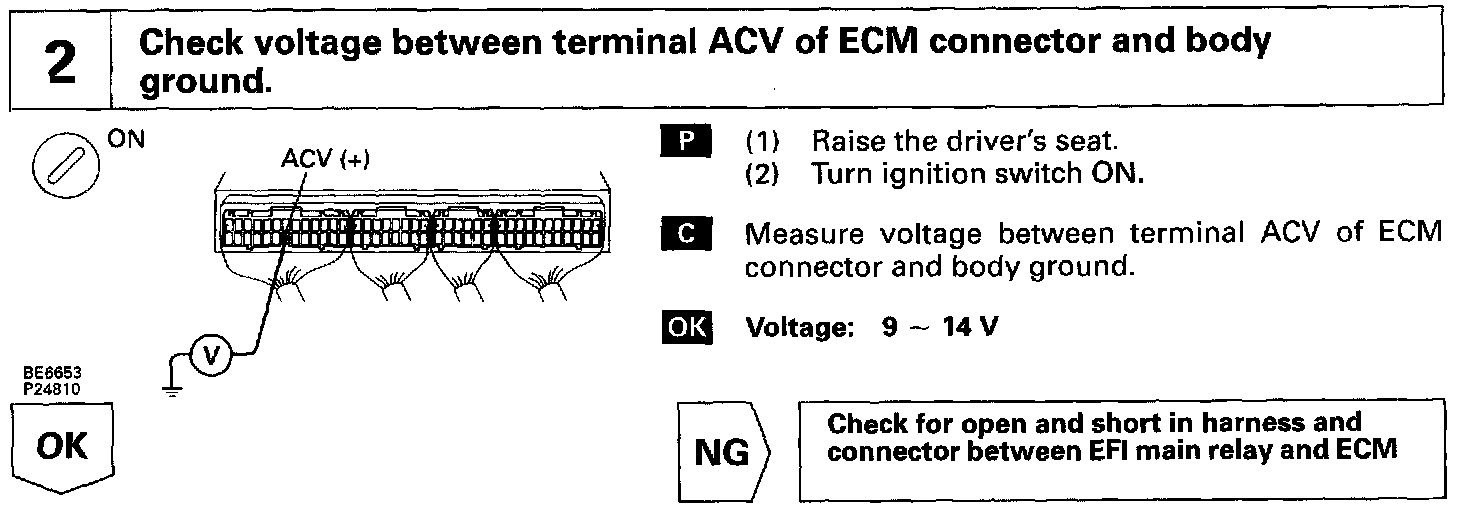

Step 2:

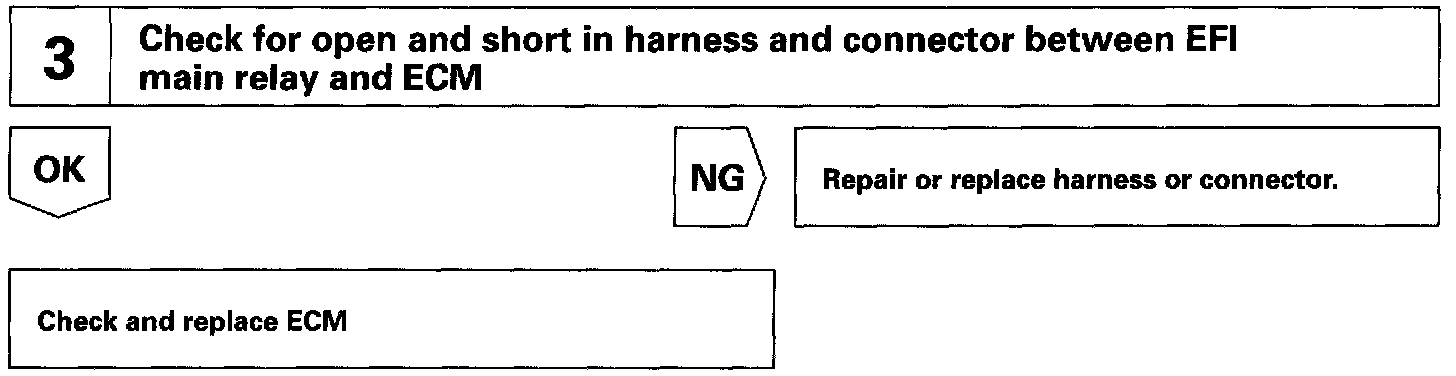

Step 3:

OBD II scan tool (excluding TOYOTA hand-held tester)
