Idle Speed/Throttle Actuator - Electronic: Service and Repair

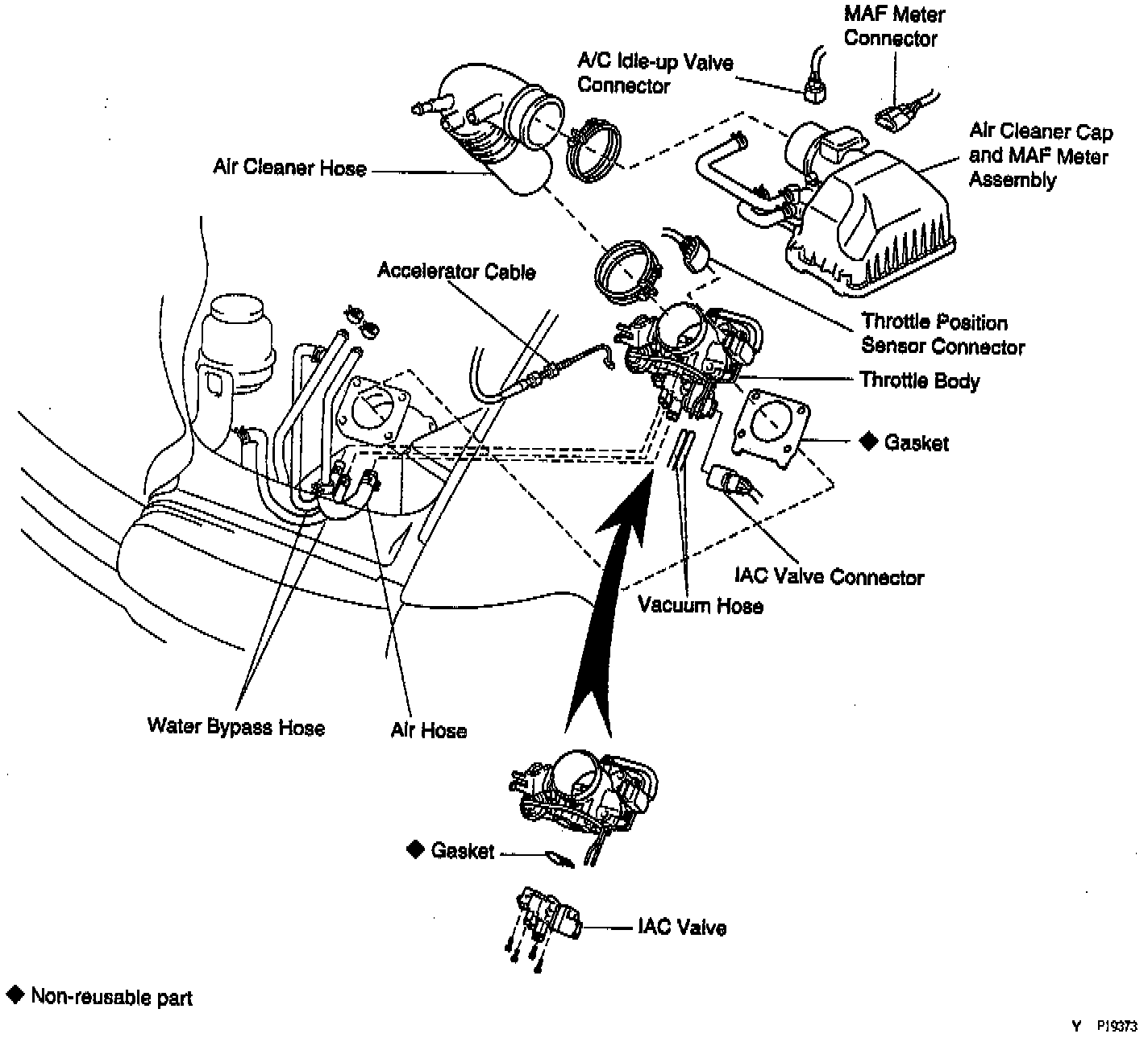

IDLE AIR CONTROL VALVE (IAC) REMOVAL AND INSTALLATION





REMOVAL
1. Remove throttle body.





2. Remove Idle Air Control (IAC) valve.

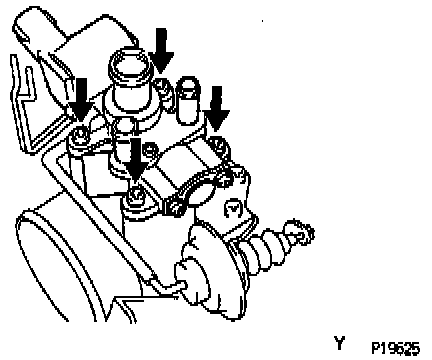

Remove the 4 screws, IAC valve and gasket.

INSTALLATION
Installation is in the reverse order of removal.

NOTE: Place a new gasket on the throttle body.
