Component Tests and General Diagnostics

CRANKSHAFT POSITION SENSOR INSPECTION

NOTICE: "Cold" and "Hot" in the following sentences express the temperature of the sensor itself. "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).

1. Disconnect crankshaft position sensor connector.





2. Inspect crankshaft position sensor resistance.

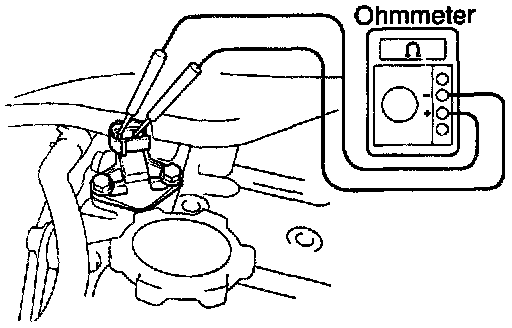

Using an ohmmeter, measure the resistance between terminals.

Resistance
(Cold): 1,630 - 2,740 ohm

Resistance
(Hot): 2,065 - 3,225 ohm

If the resistance is not as specified, replace the crankshaft position sensor.
3. Reconnect crankshaft position sensor connector.
