Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION SENSOR REMOVAL

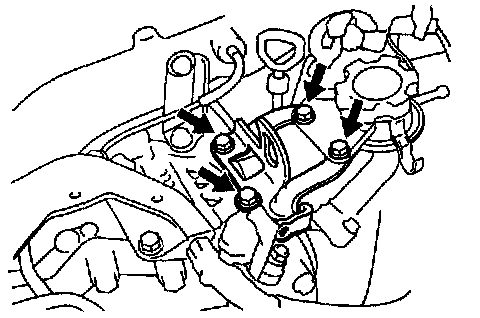

1. Remove No.2 engine hanger.
Remove the 4 bolts and engine hanger.
2. Disconnect crankshaft position sensor connector.

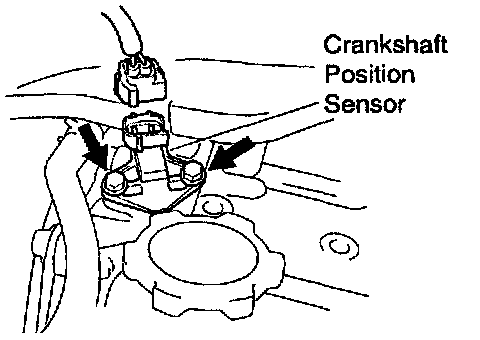

3. Remove crankshaft position sensor.
Remove the 2 bolts and crankshaft position sensor.

Torque: 8.5 N.m (85 kgf.cm, 74 in.lbf)

CRANKSHAFT POSITION SENSOR INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
