Refrigerator Control Unit: Testing and Inspection

COOL BOX AMPLIFIER INSPECTION










INSPECT AMPLIFIER CIRCUIT

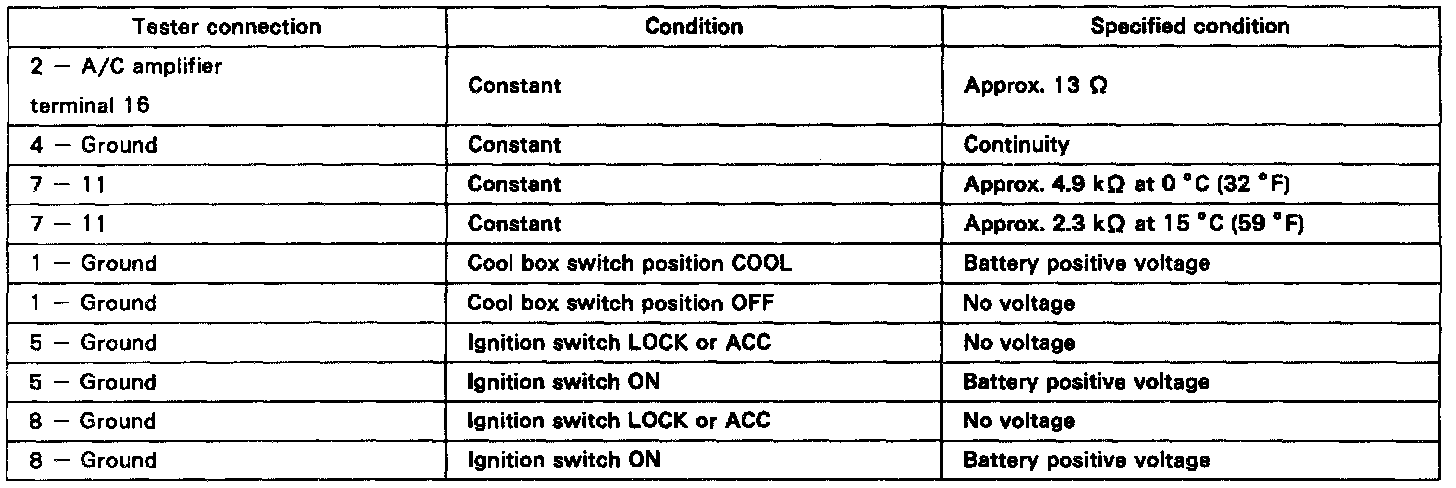

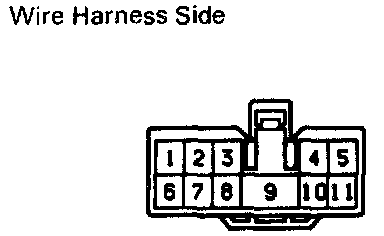

Disconnect the amplifier and inspect the connector on wire harness side, as shown in the chart.

Tester condition: Ignition switch ON

If circuit is as specified, try replacing the amplifier with a new one. If the circuit is not as specified inspect the circuits connected to other parts.
