Removal and Installation

COOL BOX REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

INSTALLATION HINT: Evacuate air from refrigeration system. Charge system with refrigerant and inspect for leakage of refrigerant.


Specified amount:
w/o Rear A/C
900 ± 50 g (31.74 ± 1.76 oz.)
w/ Rear A/C
1,150 ± 50 g (40.56 ± 1.76 oz.)

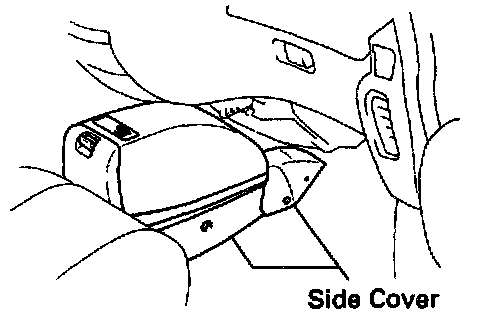

2. REMOVE SIDE COVERS

3. DISCONNECT CONNECTORS

4. DISCONNECT SUCTION AND LIQUID TUBES

Torque:
Suction tube: 23 N.m (230 kgf.cm, 17 ft.lbf)
Liquid tube: 14 N.m (140 kgf.cm, 10 ft.lbf)

REMOVAL NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

INSTALLATION HINT: Lubricate 2 new O-rings with compressor oil and install the tubes.

5. REMOVE COOL BOX MOUNTING NUTS AND COOL BOX

COOL BOX INSTALLATION
Installation is in the reverse order of removal.
