Heater Core: Service and Repair

HEATER RADIATOR REMOVAL






1. DRAIN ENGINE COOLANT FROM RADIATOR
HINT: It is not necessary to drain out all the coolant.

2. REMOVE A/C UNIT Evaporator Case

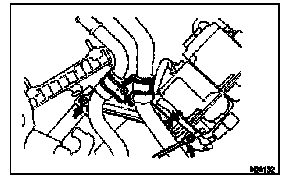

3. REMOVE HEATER RADIATOR
(a) Remove screw and 2 clamps.
(b) Pull the radiator upward.
