Front A/C Thermistor

FRONT A/C THERMISTOR INSPECTION

INSPECT THERMISTOR OPERATION

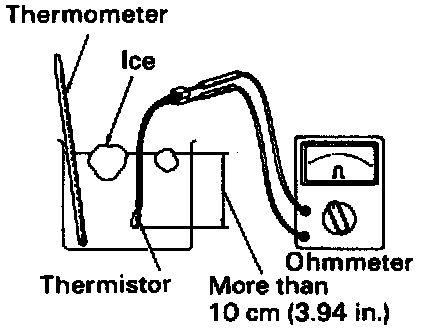

1. Place the thermistor in cold water. While changing temperature of the water, measure resistance at the connector and, at the same time, measure the temperature of the water with a thermometer.

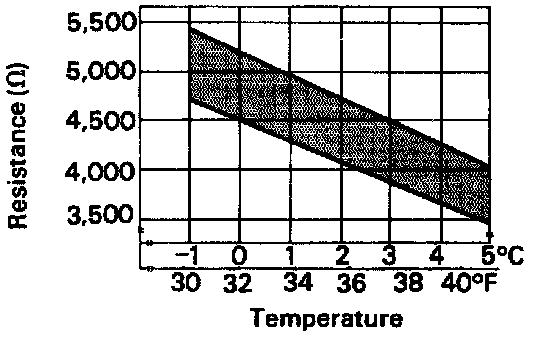

2. Compare the 2 reading on the chart.

If resistance is not as specified, replace the thermistor.
