A/C Control Switch

Air Conditioning Control Assembly:

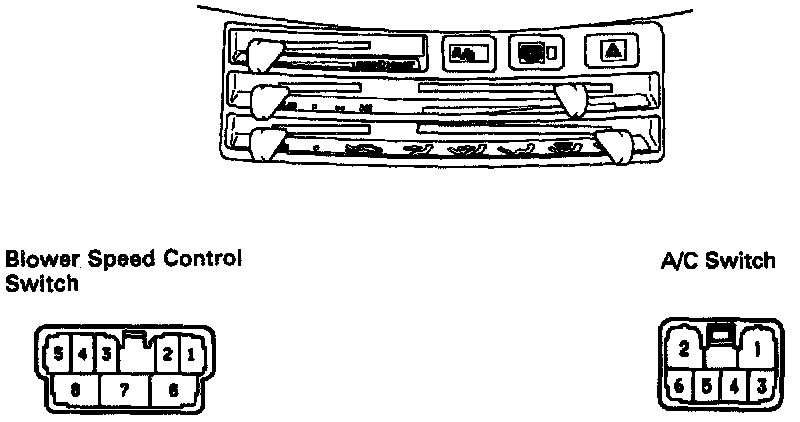

BLOWER SPEED CONTROL SWITCH AND FRONT A/C SWITCH INSPECTION

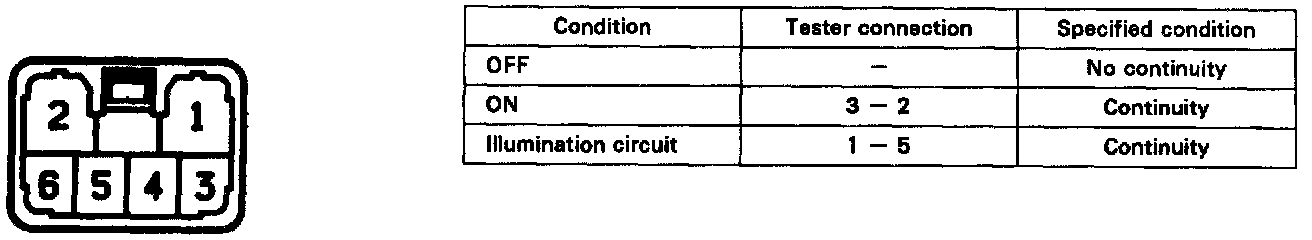

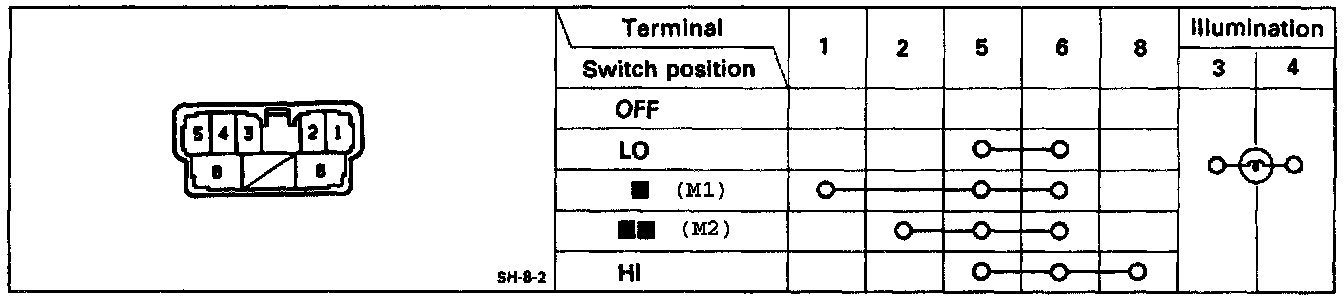

1. INSPECT SWITCH CONTINUITY
if continuity is not as specified. replace the switch.







2. INSPECT FRONT A/C SWITCH CONTINUITY
if continuity is not as specified. replace the switch.

3. INSPECT A/C INDICATOR OPERATION
a. Connect the positive (+) lead from terminal 4 and negative (+) lead to terminal 2.
b. Push the A/C button and check that the A/C indicator lights up.

If operation is not as specified. replace the A/C switch.
