Compressor Control Valve Assembly: Testing and Inspection

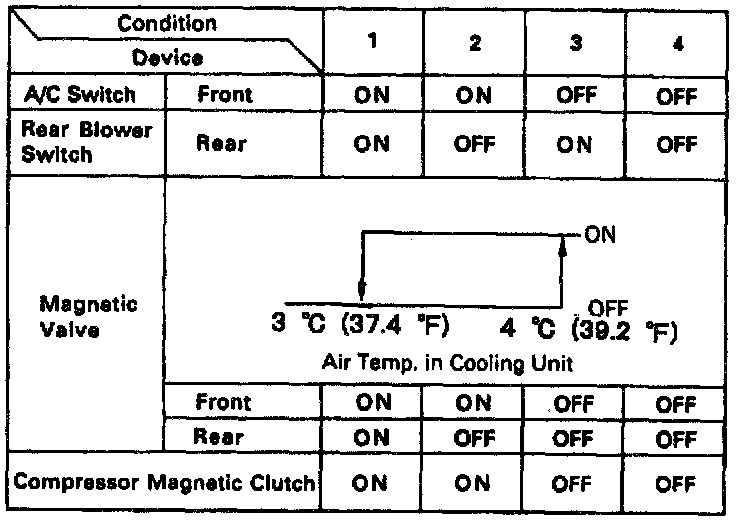

INSPECT
MAGNETIC VALVE
OPERATION
1.
A/C
ON-OFF
,

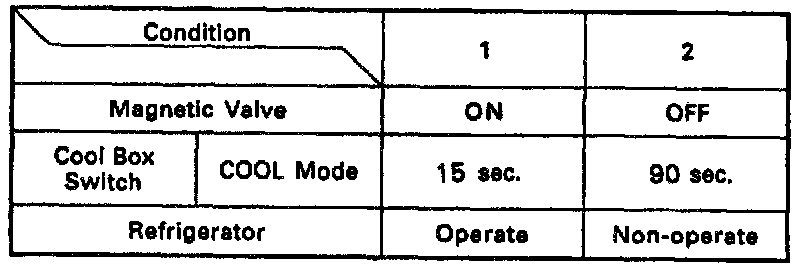

COOL BOX
OFF
2.
A/C
ON
,
COOL BOX
to COOL
