Compressor Clutch: Service and Repair
MAGNETIC CLUTCH DISASSEMBLYMagnetic Clutch:
1. REMOVE PRESSURE PLATE

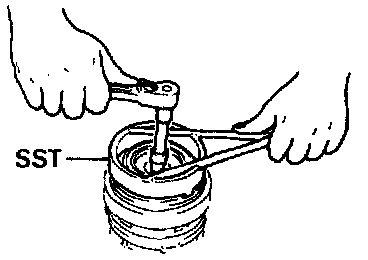

a. Using SST and a socket wrench, remove the shaft bolt.
SST 07112-76060
Torque: 14 N.m (140 kgf.cm, 10 ft.lbf)

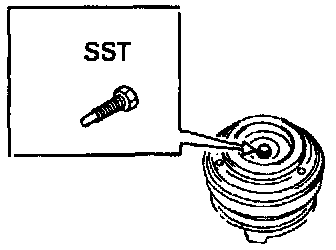

b. Install SST to the pressure plate.
SST 07112-60040

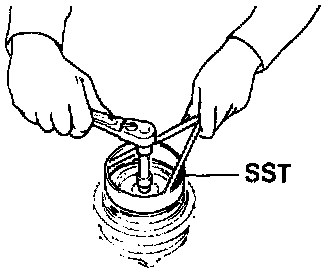

c. Using SST and the socket wrench, remove the pressure plate.
SST 07112-76060
d. Remove the shims from the pressure plate.
2. REMOVE ROTOR
a. Using SST, remove the snap ring.
SST 07114-84020
ASSEMBLY NOTE: The snap ring should be installed so that its beveled side face up.

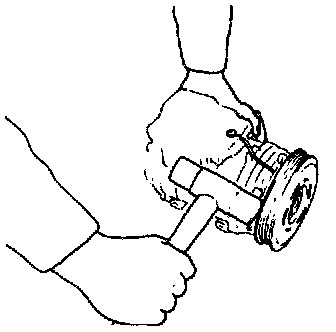

b. Using a plastic hammer, tap the rotor off the shaft.
DISASSEMBLY NOTE: Be careful not to damage the pulley when tapping on the rotor.
3. REMOVE STATOR

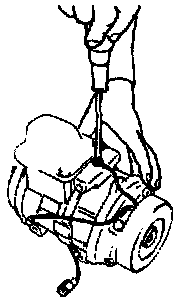

a. Disconnect the stator lead wire from the compressor housing.
b. Using SST, remove the snap ring.
SST 07114-84020
ASSEMBLY NOTE: The snap ring should be installed so that its beveled side face up.
c. Remove the stator.
MAGNETIC CLUTCH ASSEMBLY
Assembly is in the reverse order of disassembly.
CHECK CLEARANCE OF MAGNETIC CLUTCH

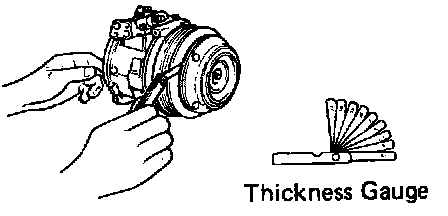

Check the clearance between the pressure plate and rotor using thickness gauge.
Standard clearance:
0.5 ± 0.15 mm (0.020 ± 0.0059 in.)
If the clearance is not within specification, change the number of shims to obtain the standard clearance.
