Rear A/C Relay






1. REMOVE RELAY

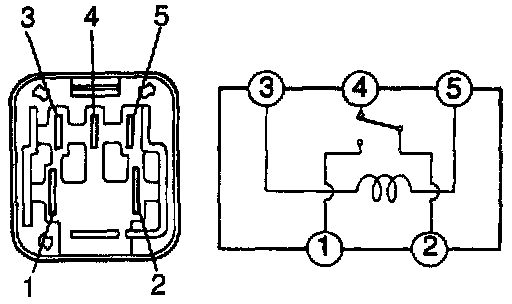

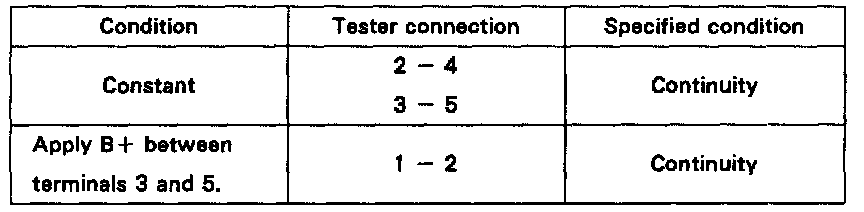

6. INSPECT REAR A/C RELAY CONTINUITY
If continuity is not as specified, replace relay.
