Home >> Toyota Truck >> 1997 >> Previa Van LE 2WD L4-2438cc 2.4L DOHC SC MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Testing and Inspection >> Compressor Cut-Off Relay >> A/C Cut-Off Relay

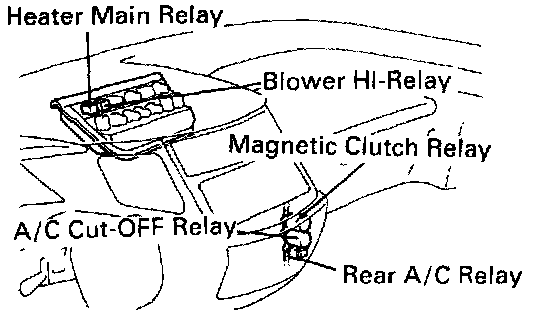

A/C Cut-Off Relay






1. REMOVE RELAY

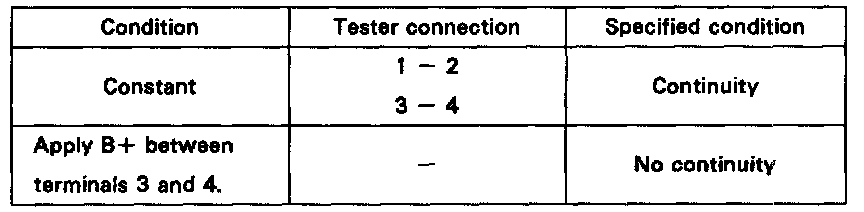

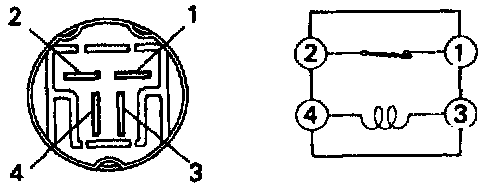

2. INSPECT A/C CUT-OFF RELAY CONTINUITY
If continuity is not as specified, replace the relay.
