Home
>>
Toyota Truck
>>
1997
>>
Previa Van LE 2WD L4-2438cc 2.4L DOHC SC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Starter Motor
Starter Motor

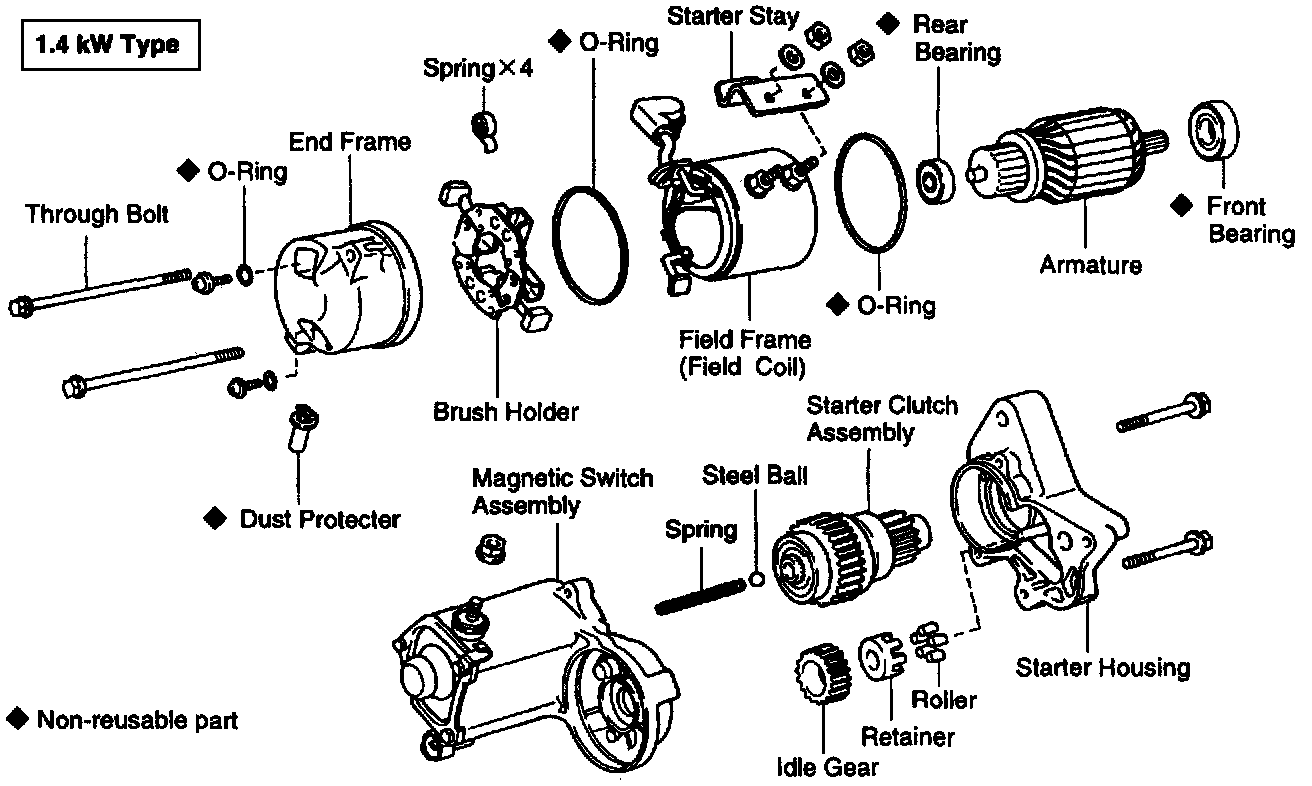

Starter / Exploded View / 1.4 kW:
Starter / Exploded View / 1.4 kW:

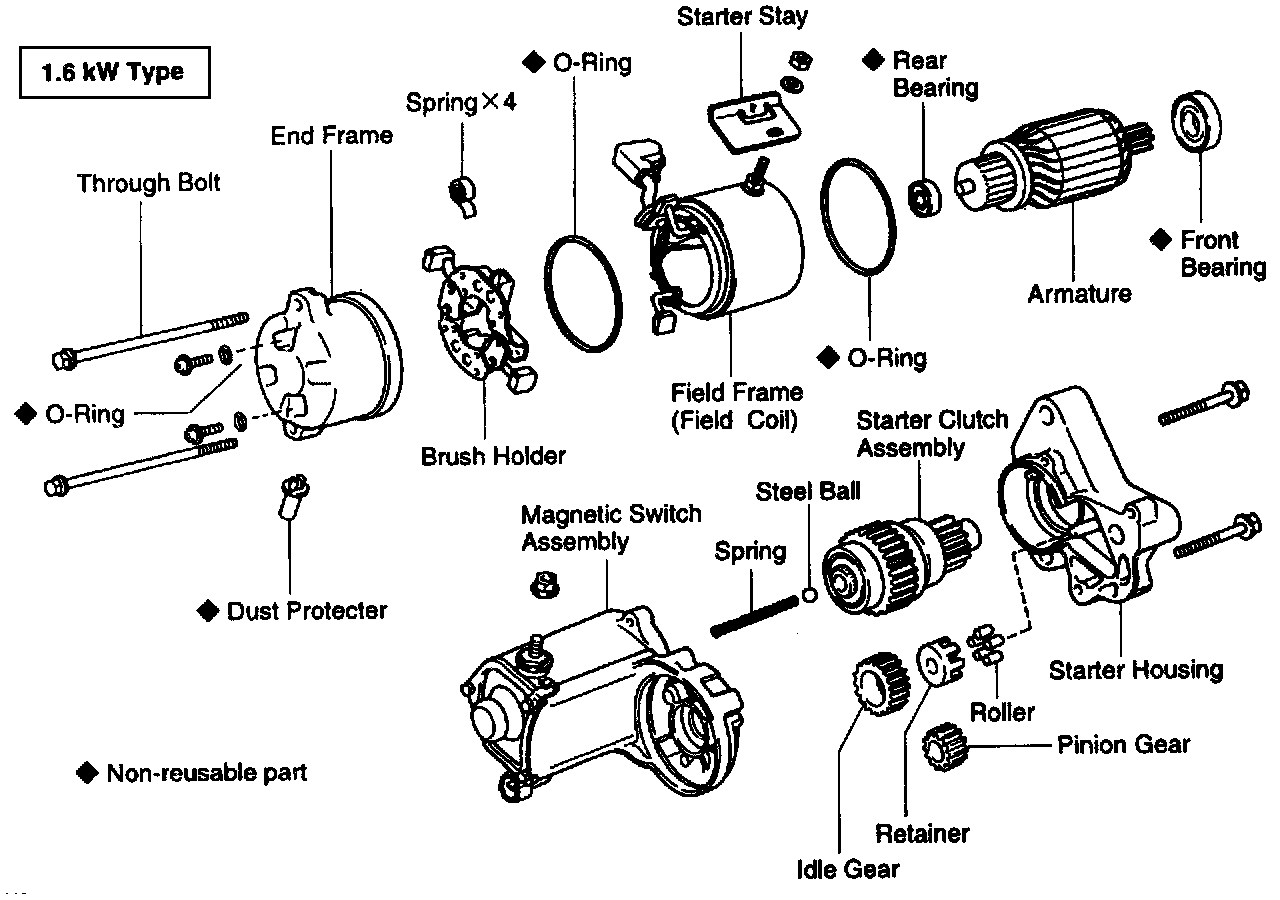

Starter / Exploded View / 1.6 kW:

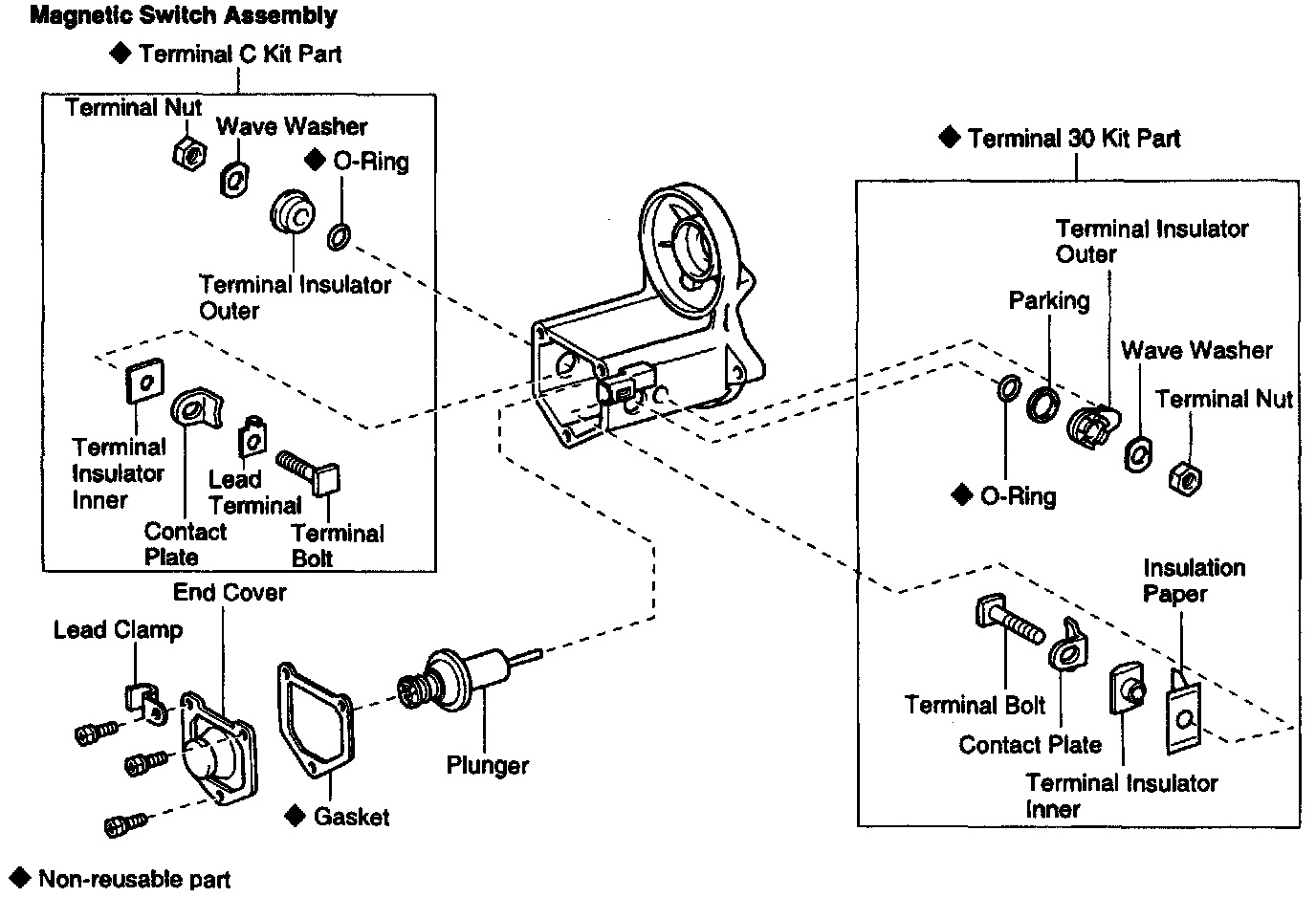

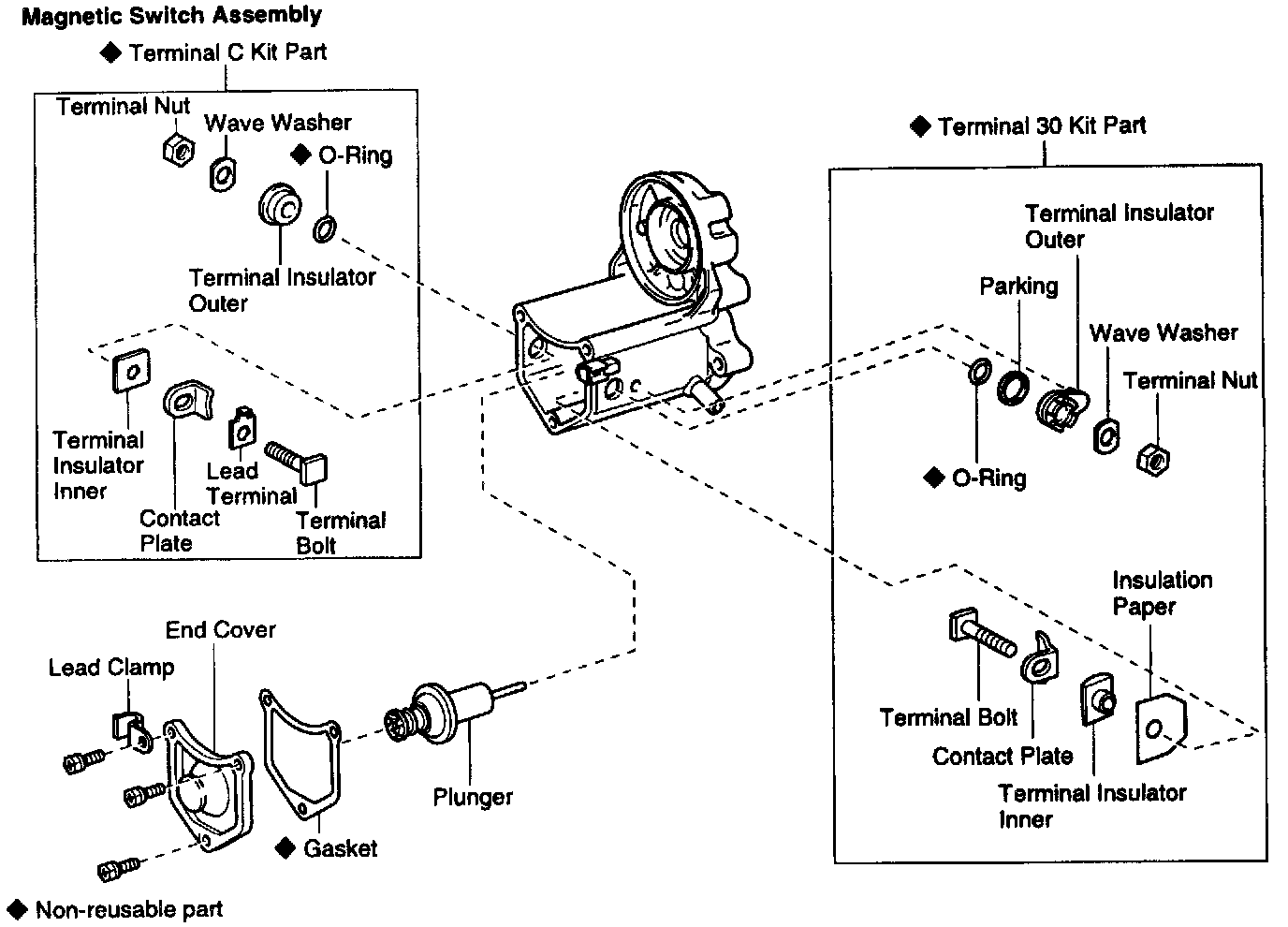

Starter / Exploded View / Magnetic Switch Assembly / 1.6 kW:
