Engine Compartment

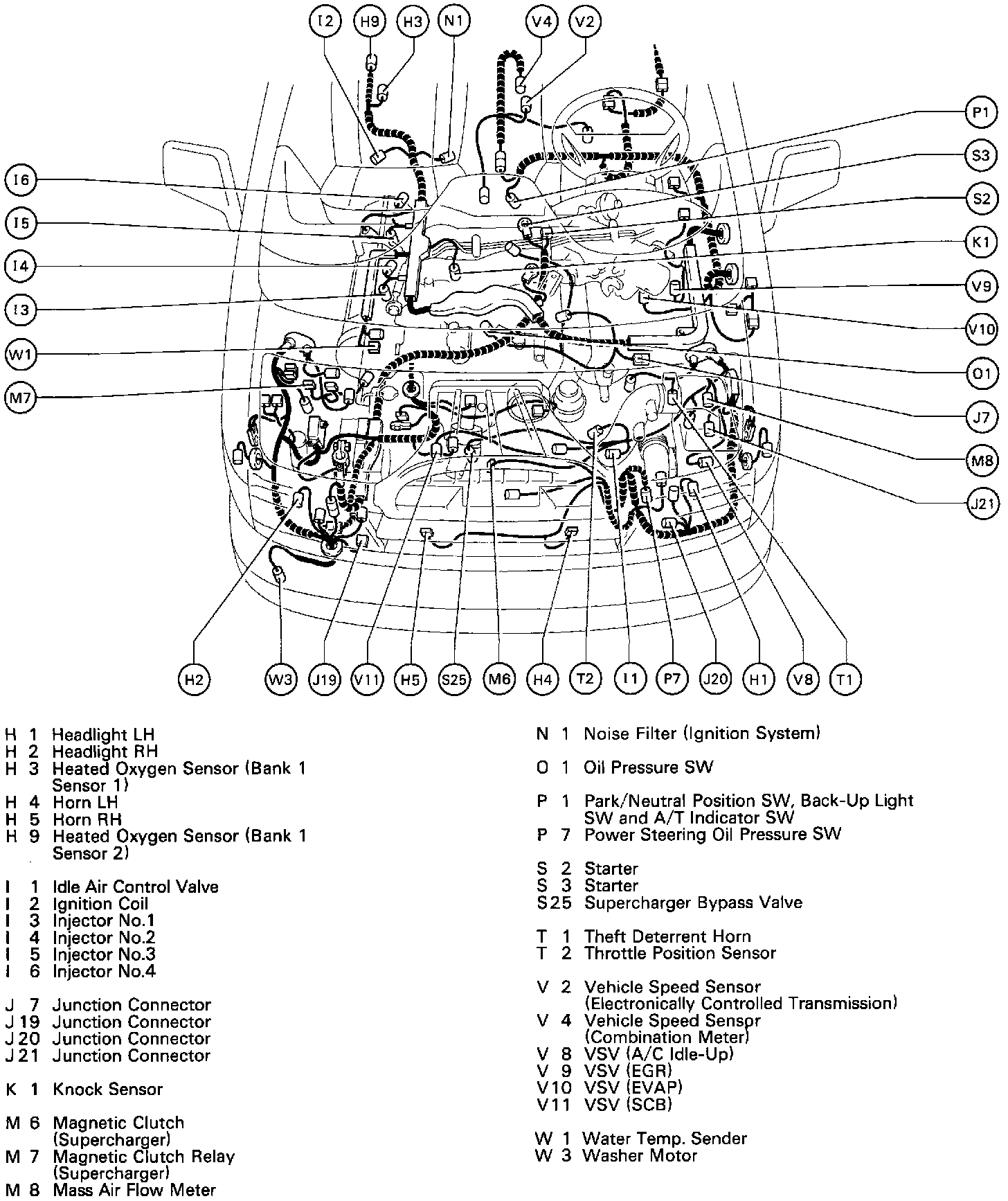

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 22):

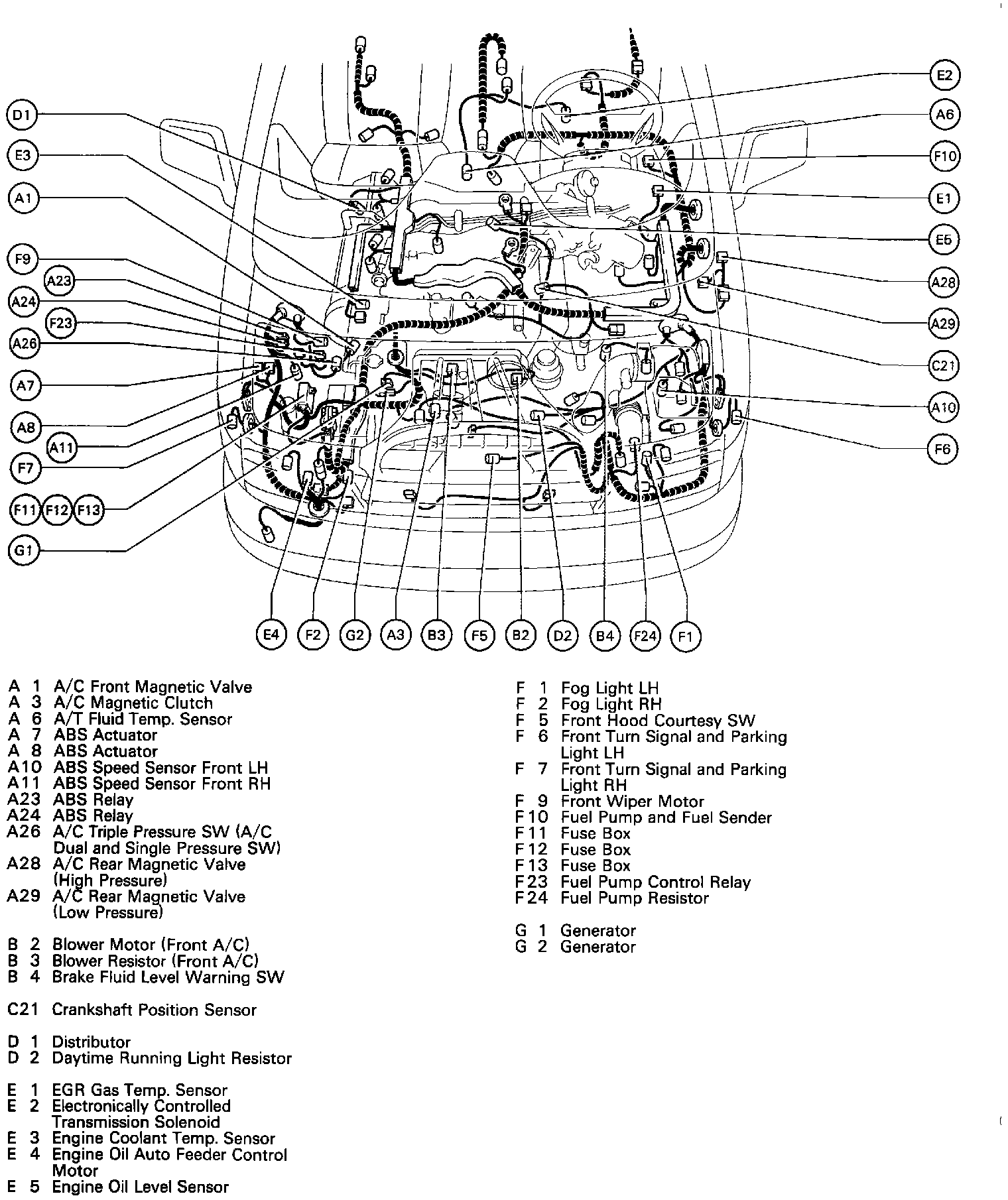

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 23):

A 1 A/C Front Magnetic Valve
A 3 A/C Magnetic Clutch
A 6 A/T Fluid Temp. Sensor
A 7 ABS Actuator
A 8 ABS Actuator
A10 ABS Speed Sensor Front LH
A11 ABS Speed Sensor Front RH
A23 ABS Relay
A24 ABS Relay
A26 A/C Triple Pressure SW (A/C Dual and Single Pressure SW)
A28 A/C Rear Magnetic Valve (High Pressure)
A29 A/C Rear Magnetic Valve (Low Pressure)

B 2 Blower Motor (Front A/C)
B 3 Blower Resistor (Front A/C)
B 4 Brake Fluid Level Warning SW

C21 Crankshaft Position Sensor

D 1 Distributor
D 2 Daytime Running Light Resistor

E 1 EGR Gas Temp. Sensor
E 2 Electronically Controlled Transmission Solenoid
E 3 Engine Coolant Temp. Sensor
E 4 Engine Oil Auto Feeder Control Motor
E 5 Engine Oil Level Sensor

F 1 Fog Light LH
F 2 Fog Light RH
F 5 Front Hood Courtesy SW
F 6 Front Turn Signal and Parking Light LH
F 7 Front Turn Signal and Parking Light RH
F 9 Front Wiper Motor
F10 Fuel Pump and Fuel Sender
F11 Fuse Box
F12 Fuse Box
F13 Fuse Box
F23 Fuel Pump Control Relay
F24 Fuel Pump Resistor

G 1 Generator
G 2 Generator

H 1 Headlight LH
H 2 Headlight RH
H 3 Heated Oxygen Sensor (Bank 1 Sensor 1)
H 4 Horn LH
H 5 Horn RH
H 9 Heated Oxygen Sensor (Bank 1 Sensor 2)

I 1 Idle Air Control Valve
I 2 Ignition Coil
I 3 Injector No.1
I 4 Injector No.2
I 5 Injector No.3
I 6 Injector No.4

J 7 Junction Connector
J19 Junction Connector
J20 Junction Connector
J21 Junction Connector

K 1 Knock Sensor

M 6 Magnetic Clutch (for Supercharger)
M 7 Magnetic Clutch Relay (for Supercharger)
M 8 Mass Air Flow

N 1 Noise Filter (Ignition System)

O 1 Oil Pressure SW

P 1 Park/Neutral Position SW (Neutral Start SW), Back-Up Light SW and A/T Indicator SW
P 7 Power Steering Oil Pressure SW

S 2 Starter
S 3 Starter
S25 Supercharger Bypass Valve

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor

V 2 Vehicle Speed Sensor (Speed Sensor) (for Electronically Controlled Transmission)
V 4 Vehicle Speed Sensor (for Combination Meter)
V 8 VSV (for A/C Idle-Up)
V 9 VSV (for EGR)
V10 VSV (for EVAP)
V11 VSV (for SCB)

W 1 Water Temp. Sender
W 3 Washer Motor
