Body

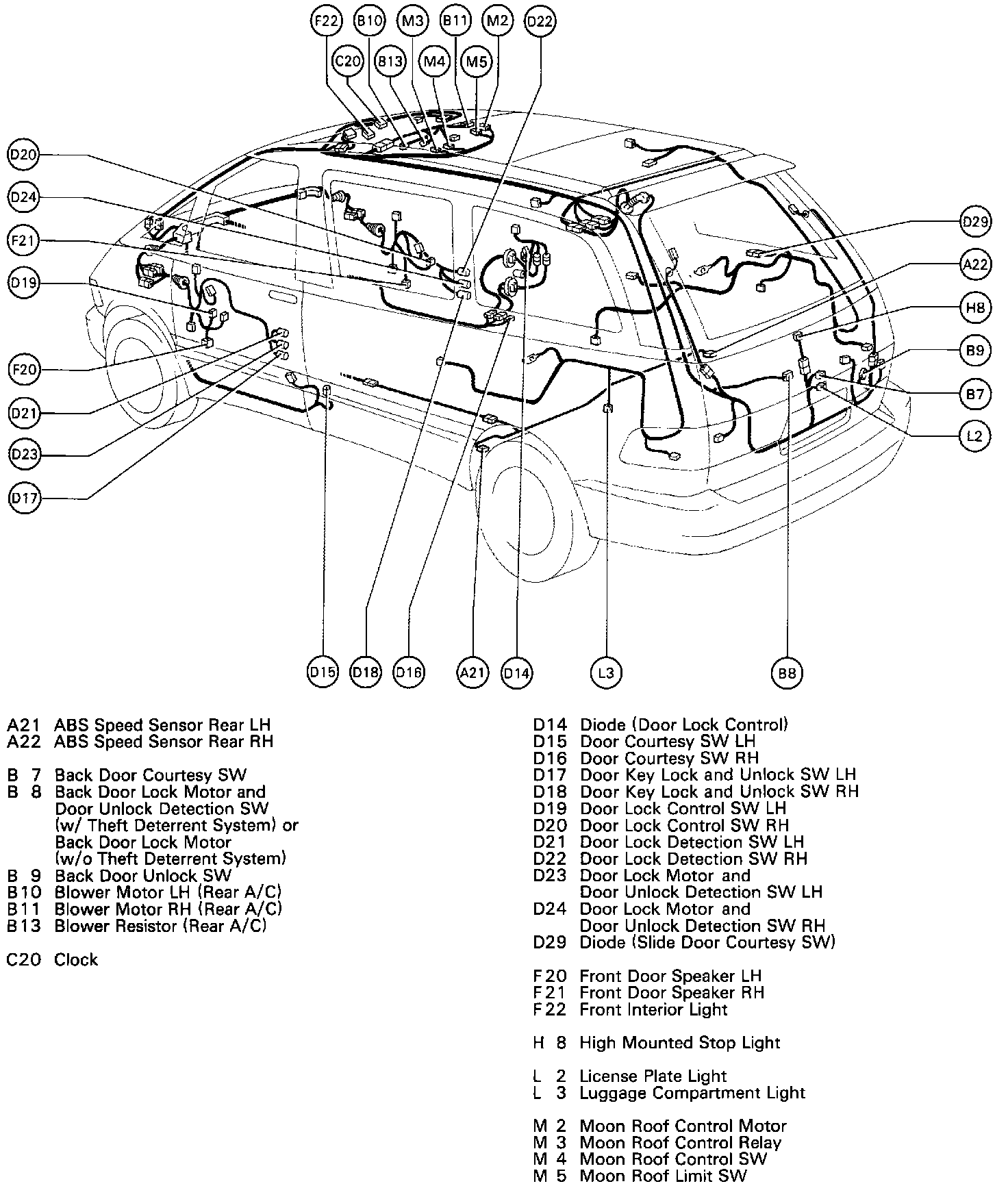

Position Of Parts In Body (Part 1 Of 2) (Fig 26):

Position Of Parts In Body (Part 2 Of 2) (Fig 27):

A21 ABS Speed Sensor Rear LH
A22 ABS Speed Sensor Rear RH

B 7 Back Door Courtesy SW
B 8 Back Door Lock Motor and Door Unlock Detection SW (W/ Theft Deterrent System) or Back Door Lock Motor (w/o Theft Deterrent System)
B 9 Back Door Unlock SW
B10 Blower Motor LH (Rear A/C)
B11 Blower Motor RH (Rear A/C)
B13 Blower Resistor (Rear A/C)

C20 Clock

D14 Diode (for Door Lock Control)
D15 Door Courtesy SW LH
D16 Door Courtesy SW RH
D17 Door Key Lock and Unlock SW LH
D18 Door Key Lock and Unlock SW RH
D19 Door Lock Control SW LH
D20 Door Lock Control SW RH
D21 Door Lock Detection SW LH
D22 Door Lock Detection SW RH
D23 Door Lock Motor and Door Unlock Detection SW LH
D24 Door Lock Motor and Door Unlock Detection SW RH
D29 Diode (Slide Door Courtesy SW)

F20 Front Door Speaker LH
F21 Front Door Speaker RH
F22 Front Interior Light

H 8 High Mounted Stop Light

L 2 License Plate Light
L 3 Luggage Compartment Light

M 2 Moon Roof Control Motor
M 3 Moon Roof Control Relay
M 4 Moon Roof Control SW
M 5 Moon Roof Limit SW

P 2 Parking Brake SW
P 3 Power Window Master SW
P 4 Power Window Motor LH
P 5 Power Window Motor RH
P 6 Power Window SW RH

R 8 Rear A/C Control SW
R 9 Rear Combination Light LH
R10 Rear Combination Light LH
R11 Rear Combination Light RH
R12 Rear Combination Light RH
R13 Rear Interior Light
R15 Rear Speaker LH
R16 Rear Speaker RH
R17 Rear Tweeter (Speaker) LH
R18 Rear Tweeter (Speaker) RH
R19 Rear Window Defogger
R20 Rear Window Defogger
R21 Rear Wiper Motor
R22 Remote Control Mirror LH
R23 Remote Control Mirror RH
R24 Remote Control Mirror SW

S14 Slide Door Courtesy SW
S15 Slide Door Junction SW (Body Side, w/ Theft Deterrent System)
S16 Slide Door Junction SW (Body Side, w/ Theft Deterrent System) or Slide Door Lock Motor (w/o Theft Deterrent System)
S17 Slide Door Junction SW (Slide Door Side, w/ Theft Deterrent System)
S18 Slide Door Junction SW (Slide Door Side, w/ Theft Deterrent System)
S19 Slide Door Key Lock and Unlock SW (w/ Theft Deterrent System)
S20 Slide Door Lock Motor and Door Unlock Detection SW (W/ Theft Deterrent System)

V 7 Vanity Light RH
V12 Vanity Light LH

W 2 Woofer (Speaker) Amplifier
