System Inspections

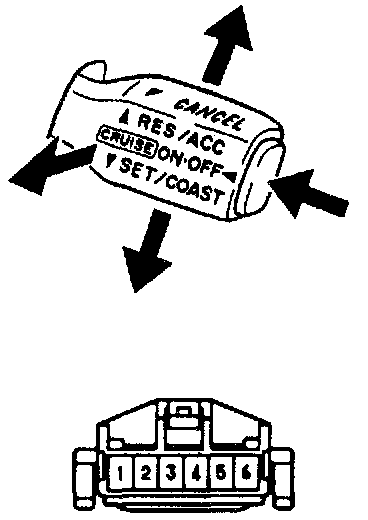

INSPECT SWITCH CONTINUITY

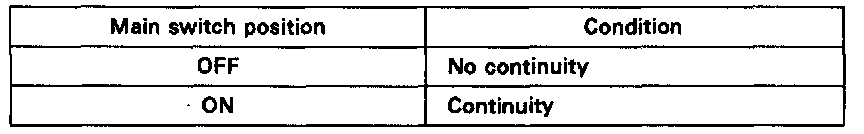

1. Check continuity between terminals 3 and 5.

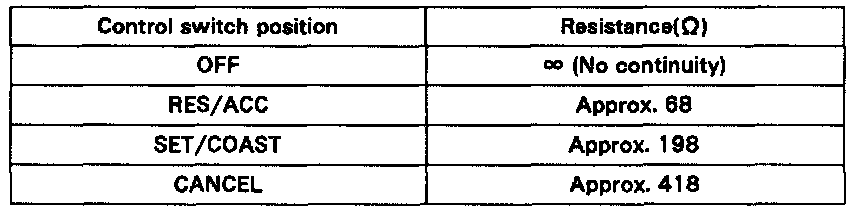

2. Measure resistance between terminals 3 and 4.

If resistance value is not as specified, replace the control switch.
