Front

Front Speed Sensor:

REMOVAL
1. Disconnect Speed Sensor connector.
2. Remove Speed Sensor.

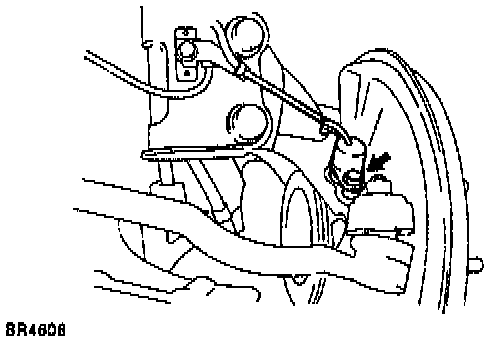

Disconnect And Remove Speed Sensor:

(a) Remove the clamp bolts holding the sensor harness from the frame, upper arm and Steering Knuckle.
Torque 5.4 Nm (48 inch lbs.)
(b) Remove the Speed Sensor from the Steering Knuckle.
Torque 7.8 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.
After installation, check Speed Sensor signal.

CAUTION: Make sure that:
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.
