ECU Circuit Inspection

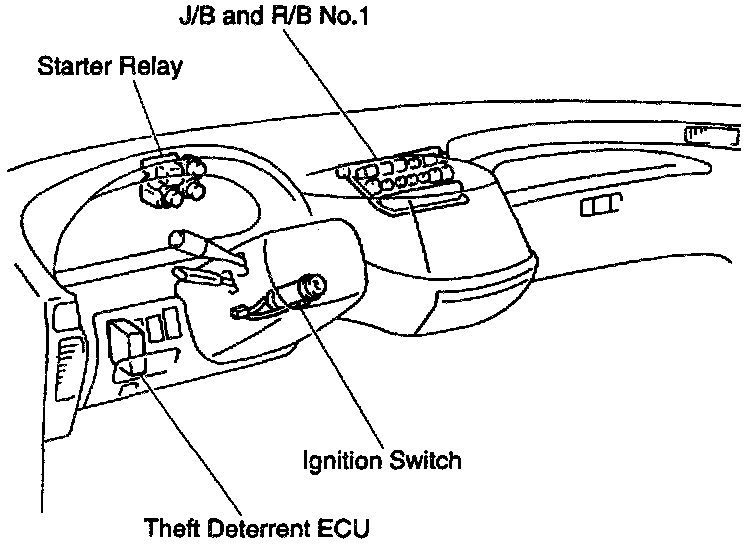

Theft Deterrent System / Components Location:

THEFT DETERRENT ECU CIRCUIT INSPECTION

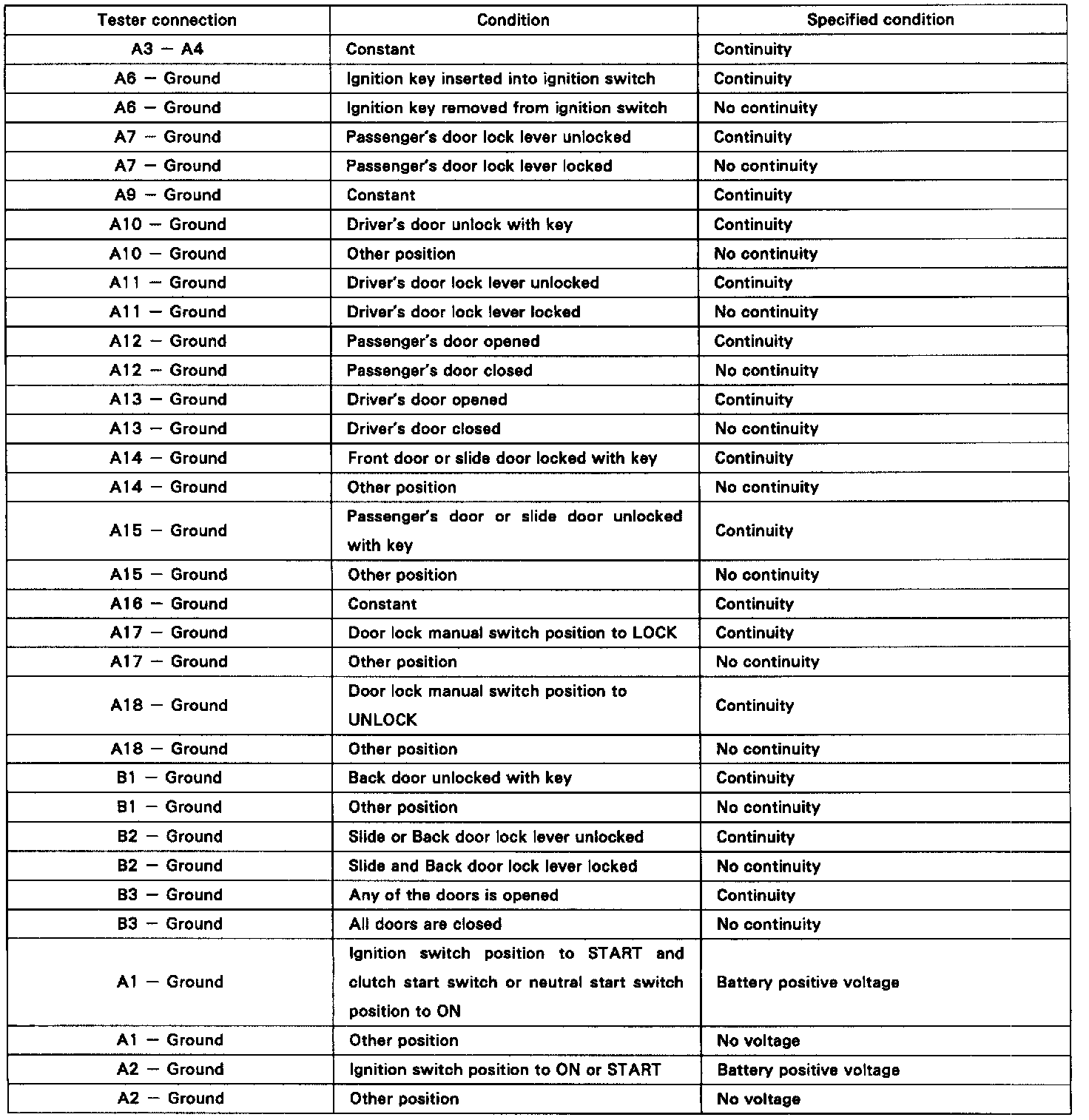

Theft Deterrent ECU Circuit (1 Of 2):

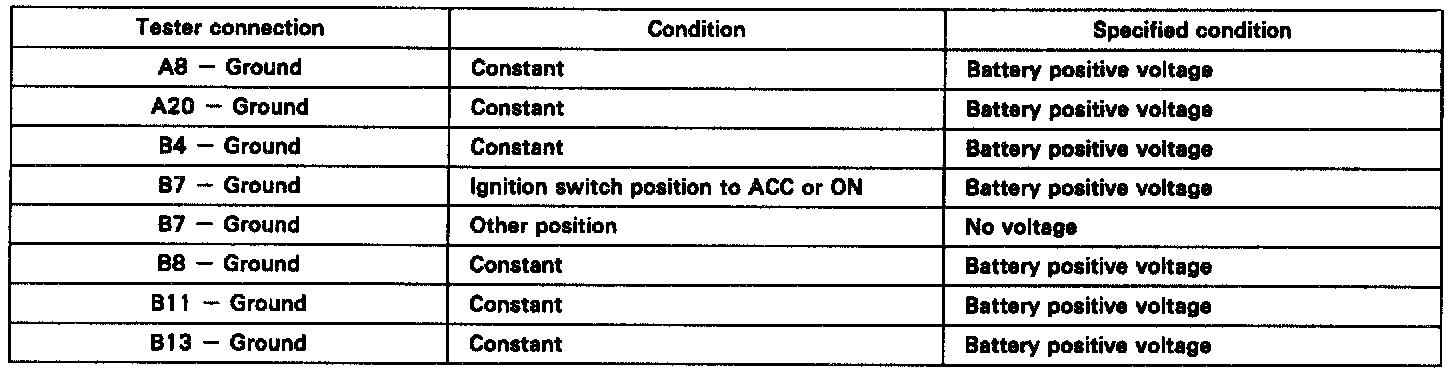

Theft Deterrent ECU Circuit (2 Of 2):

INSPECT THEFT DETERRENT ECU CIRCUIT

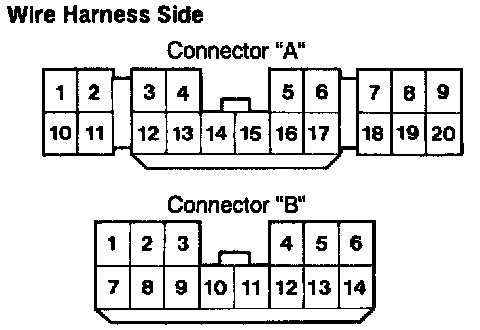

Disconnect the connectors and inspect the connectors on the wire harness side, as shown in the chart.

*: This circuit includes the LED or diode. If the circuit shows no continuity, change the positive and negative probes and recheck the circuit.

If circuit is correct. replace the theft deterrent ECU.
