Case: Testing and Inspection

TRANSMISSION CASE INSPECTION






Inspect transmission case bushing.

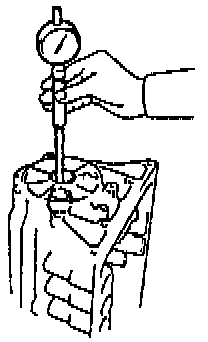

- Using a cylinder gauge, measure the inside diameter of the transmission case rear bushing.
Maximum inside diameter: 38.19 mm (1.5035 in.)
- If the inside diameter is greater than the maximum, replace the transmission case.
