Brush Holder, Alternator

Bush Holder

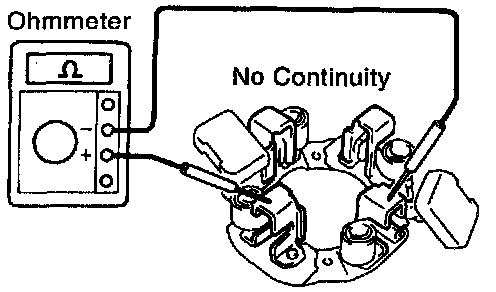

INSPECT INSULATION OF BRUSH HOLDER
Using an ohmmeter, check that there is no continuity between the positive (+) and negative (-) brush holders.

If there is continuity, repair or replace the brush holder.
