Bearings

Bearings

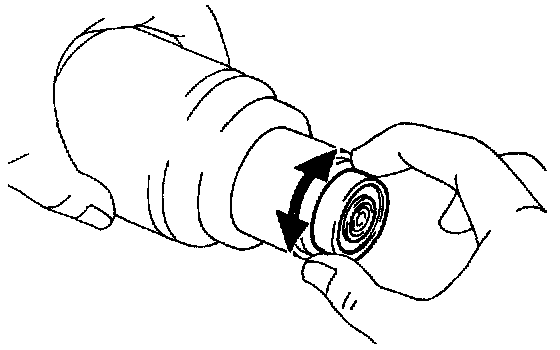

1. INSPECT FRONT BEARING
Turn each bearing by hand while applying inward force. If the resistance is felt or if the bearing sticks, replace the bearing.

2. IF NECESSARY, REPLACE FRONT BEARING

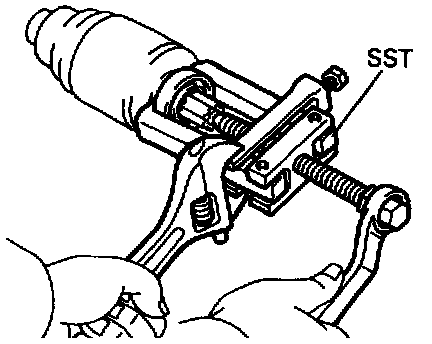

Front Bearings (3RZ-FE):

a. Using SST remove the bearing.
SST 09286-46011

b. Using a press, press in a new rear bearing.







3. INSPECT REAR BEARING
Turn each bearing by hand while applying inward force.

If the resistance is felt or if the bearing sticks, replace the bearing.

4. IF NECESSARY, REPLACE REAR BEARING

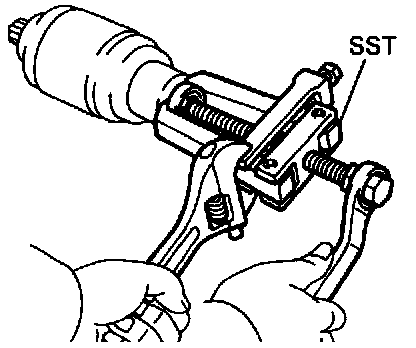

Rear Bearings (3RZ-FE):

a. Using SST, remove the bearing.
SST 09286-46011

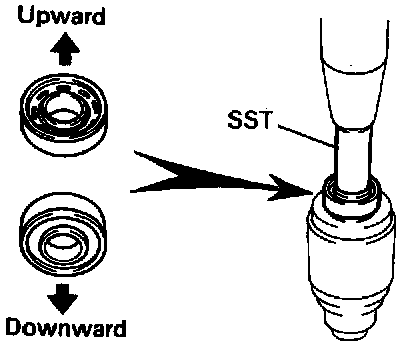

Pressing In New Bearing (3RZ-FE):

b. Using SST and a press, press in a new bearing.

NOTE: Be careful of the bearing installation direction.

SST 09820-00030
