Removal and Installation

Starter Motor:

STARTER REMOVAL







REMOVE STARTER

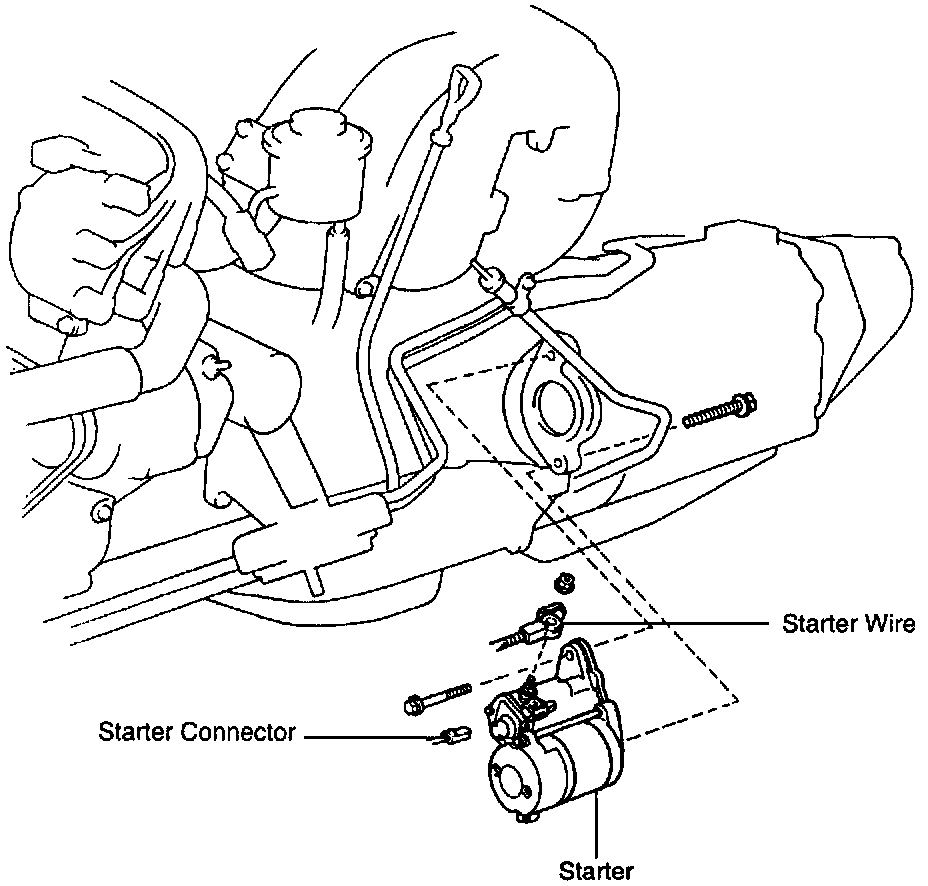

1. Disconnect the starter connector.
2. Remove the nut, and disconnect the starter wire.

Torque: 8.8 N.m (90 kgf.cm, 70 in.lbf)

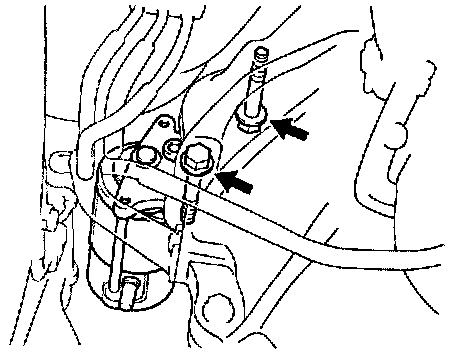

3. Remove the 2 bolts and starter.

Torque: 39 N.m (400 kgf.cm. 29 ft.lbf)

STARTER INSTALLATION
Installation is in the reverse order of removal.
