Brushes

Brushes

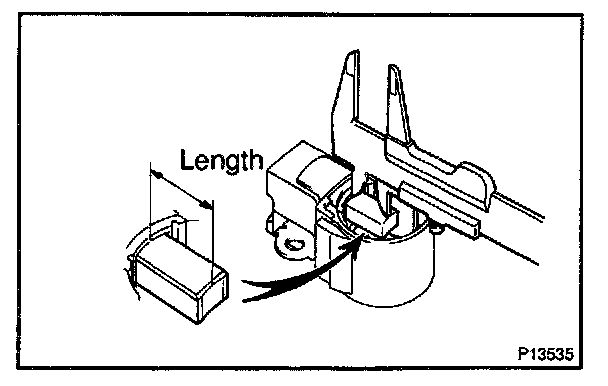

INSPECT EXPOSED BRUSH LENGTH
Using vernier calipers, measure the exposed brush length.

Standard exposed length:
10.5 mm (0.413 in.)

Minimum exposed length:
1.5 mm (0.059 in.)

If the exposed length is less than minimum, replace the brushes and brush holder assembly.
