Tail Lamp Relay: Testing and Inspection

TAILLIGHT CONTROL RELAY INSPECTION

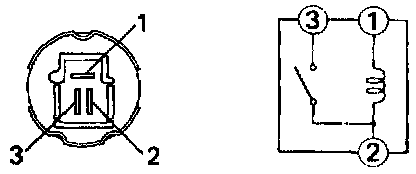

Terminal Identification:

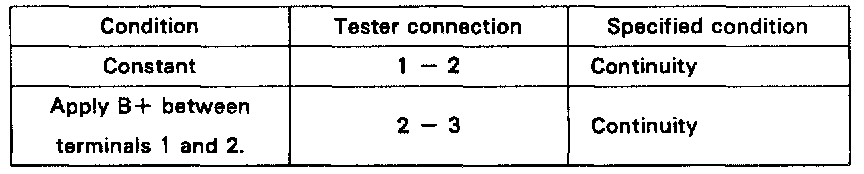

Taillight Control Relay Continuity:

INSPECT RELAY CONTINUITY
If continuity is not as specified, replace the relay.
