Sliding Roof Control Relay Circuit

SLIDING ROOF CONTROL RELAY INSPECTION







INSPECT RELAY CIRCUIT

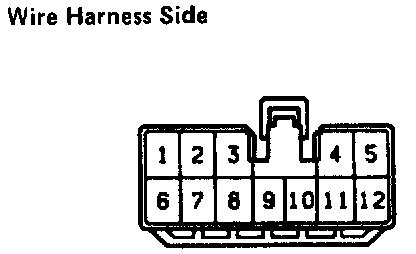

Disconnect the connector from the relay and inspect the connector on the wire harness side, as shown in the chart.

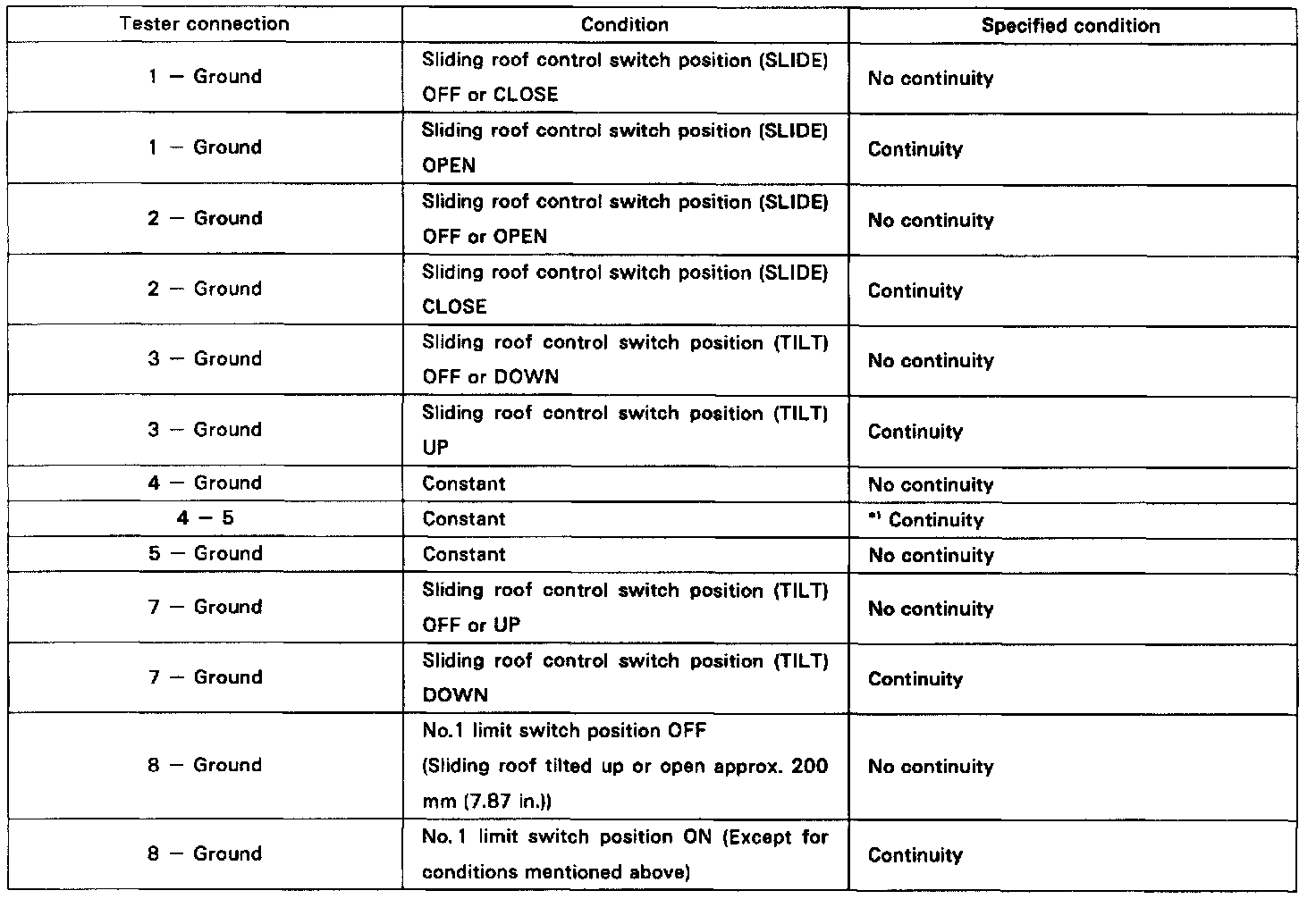

Part 1 Of 2:

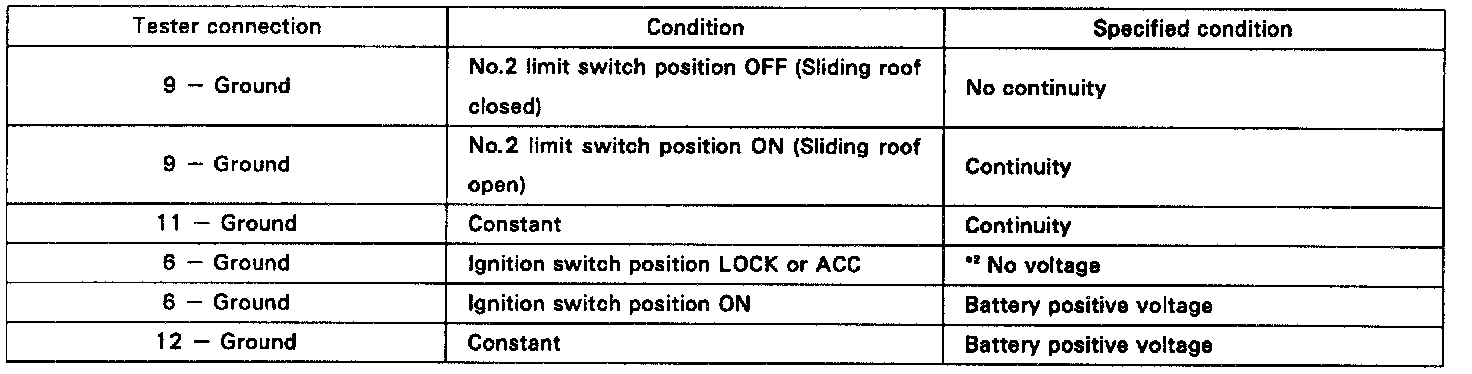

Part 2 Of 2:

* 1 : There is resistance because this circuit is include motor.

* 2 : Exceptions: During 60 second period after ignition switch ON OFF (ACC) or until driver or passenger door is opened after ignition switch ON OFF (ACC). If circuit is as specified, replace the relay.

If circuit is as specified. replace the relay.

If circuit is not as specified, inspect the circuits connected to other parts.

Refer to Power Main Relay, Inspection.
[1][2]Power Main Relay
