Fuel Pressure: Testing and Inspection

FUEL PRESSURE TESTING

(a) Check the battery voltage is above 12 V.
(b) Disconnect the negative (-) terminal cable from the battery.

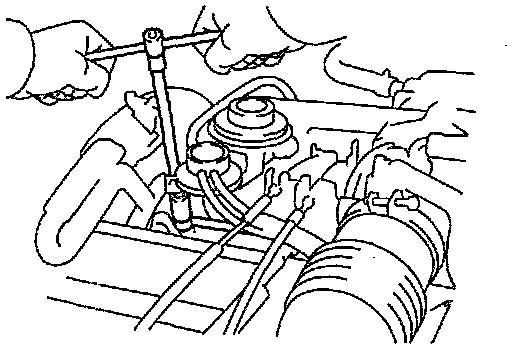

(c) Remove the union bolt and 2 gaskets and disconnect the fuel inlet pipe from the delivery pipe.

CAUTION:
- Put a shop towel under the delivery pipe.
- Slowly loosen the union bolt.




(d) Install the fuel inlet pipe and SST (pressure gauge) to the delivery pipe with the 3 gaskets and SST (union bolt). SST 09268-45012

Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

(e) Wipe off any splattered gasoline.




(f) Connect the TOYOTA hand-held tester to the DLC3.
(g) Reconnect the negative (-) terminal cable to the battery.
(h) Turn the ignition switch ON.
(i) Measure the fuel pressure.

Fuel pressure: 265 - 304 kPa
(2.7 - 3.1 kgf/cm2, 38 - 44 psi)

If pressure is high, replace the fuel pressure regulator. If pressure is low, check these parts:
- Fuel hoses and connections
- Fuel pump
- Fuel filter
- Fuel pressure regulator
(j) Remove the TOYOTA hand-held tester from the DLC3.
(k) Reinstall the fuse cover on the instrument panel.
(l) Start the engine.

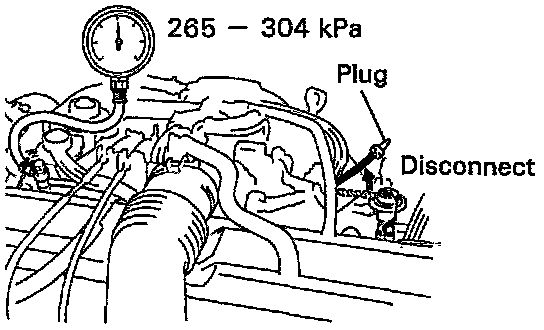

(m) Disconnect the vacuum sensing hose from the fuel pressure regulator and plug the hose end.
(n) Measure the fuel pressure at idle.

Fuel pressure: 265 - 304 kPa
(2,7 - 3.1 kgf/cm2, 38 - 44 psi)

(o) Reconnect the vacuum sensing hose to the fuel pressure regulator.
(p) Measure the fuel pressure at idle.

Fuel pressure: 206 - 255 kPa
(2.1 - 2.6 kgf/cm2, 31 - 37 psi)

If pressure is not as specified, check the vacuum sensing hose and fuel pressure regulator.
(q) Stop the engine.
(r) Check that the fuel pressure remains as specified for 5 minutes after the engine has stopped.

Fuel pressure: 147 kPa (1.5 kgf/cm2, 21 psi) or more

If pressure is not as specified, check the fuel pump, pressure regulator and/or injectors.
(s) After checking fuel pressure, disconnect the negative (-) terminal cable from the battery and carefully remove the SST to prevent gasoline from splashing. SST 09268-45012
(t) Reconnect the fuel inlet pipe to the delivery pipe with 2 new gaskets and the union bolt.

Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

(u) Reconnect the negative (-) terminal cable to the battery.
(v) Check for fuel leakage.
