Evaporative Emission Control Canister: Service and Repair

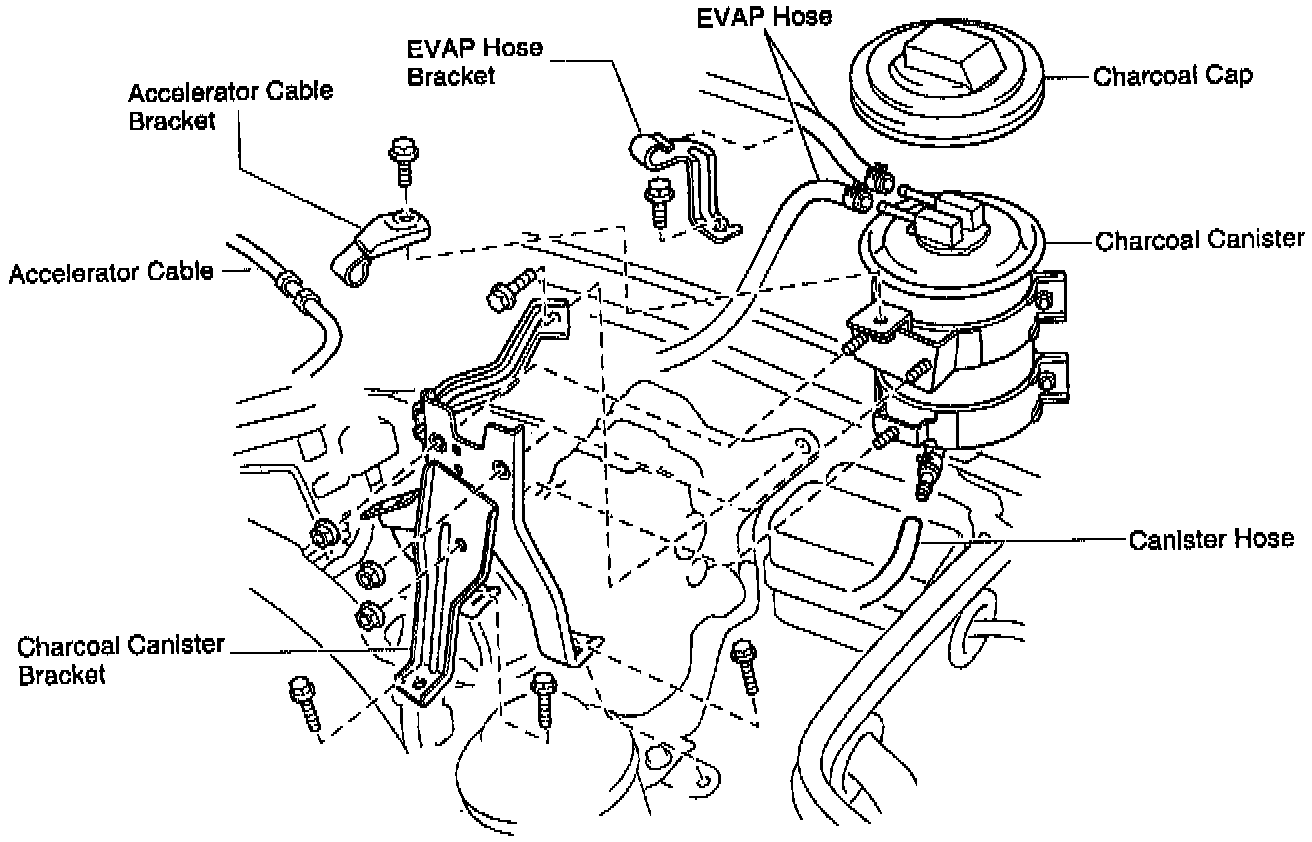

CHARCOAL CANISTER REMOVAL AND INSTALLATION

REMOVAL
1. Remove charcoal canister with bracket.
2. Remove charcoal canister from bracket.
3. Remove cap from charcoal canister.

INSTALLATION
1. Install cap to charcoal canister.
2. Install charcoal canister to bracket.

Torque: 14 N.m (145 kgf.cm, 10 ft.lbf)

3. Install charcoal canister with bracket.

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
