Fail Safe Operation
Fail Safe Operation

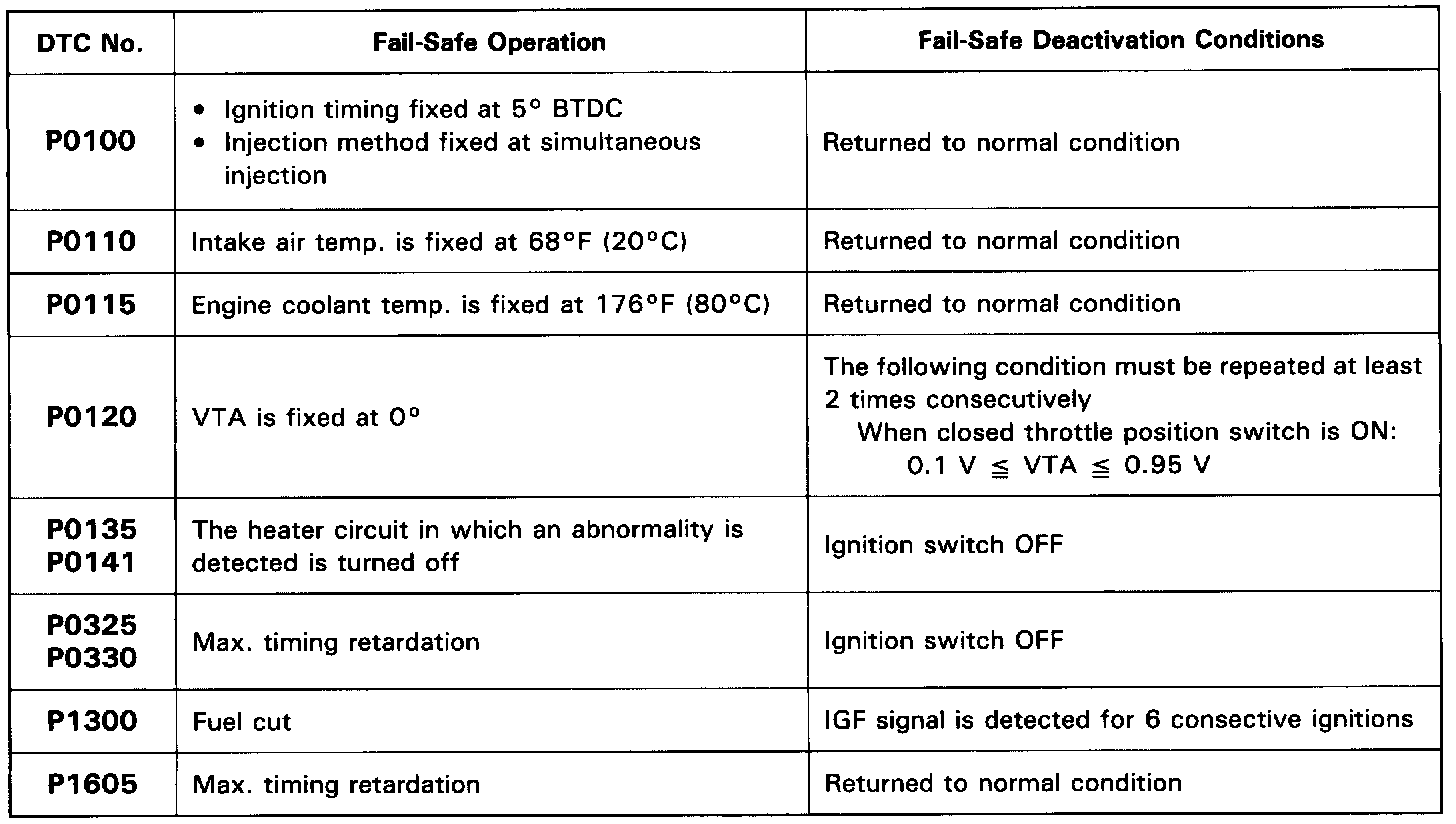

Fail-Safe Chart:
If any of the following codes is recorded, the ECM enters fail-safe mode.
