Fuel Cut RPM Inspection

FUEL CUT OFF INSPECTION

1. Warm up engine.
Allow the engine to warm up to normal operating temperature.
2. Connect TOYOTA hand-held tester or OBD II scan tool.
(a) Remove the fuse cover on the instrument panel.

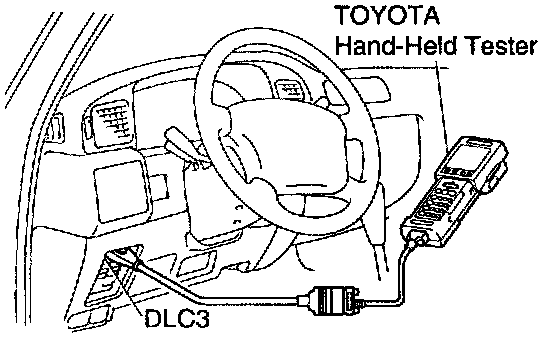

(b) Connect the TOYOTA hand-held tester or OBD II scan tool to the DLC3.
(c) Please refer to the TOYOTA hand-held tester or OBD II scan tool operator's manual for further details.
3. Inspect fuel cut off RPM.
(a) Increase the engine speed to at least 3,500 rpm.

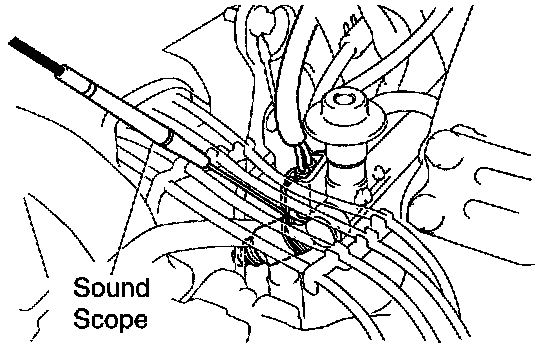

(b) Use a sound scope to check for injector operating noise.
(c) Check that when the throttle lever is released, injector operation noise stops momentarily and then resumes.

HINT: Measure with the A/C OFF.

Fuel return rpm: 1,200 rpm

4. Disconnect TOYOTA hand-held tester or OBD II scan tool.
