Component Inspection

IDLE AIR CONTROL (IAC) VALVE INSPECTION

Inspect idle air control (IAC) valve operation.

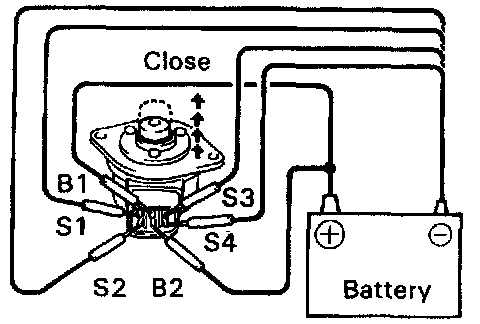

(a) Apply battery voltage to terminals B1 and B2 and while repeatedly grounding S1 - S2 - S3 - S4 - S1 in sequence and check that the valve moves toward the closed position.

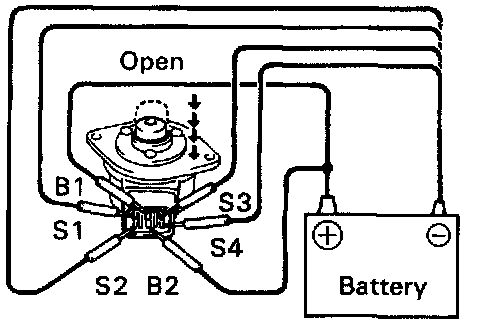

(b) Apply battery voltage to terminals B1 and B2 and while repeatedly grounding S4 - S3 - S2 - S1 - S4 in sequence and check that the valve moves toward the open position.
If operation is not as specified, replace the AC valve.
