Idle Speed/Throttle Actuator - Electronic: Service and Repair

COMPONENTS FOR REMOVAL AND INSTALLATION

IDLE AIR CONTROL (IAC) VALVE REMOVAL

1. Remove throttle body.
NOTE: Refer to throttle body Service and Repair.
Service and Repair

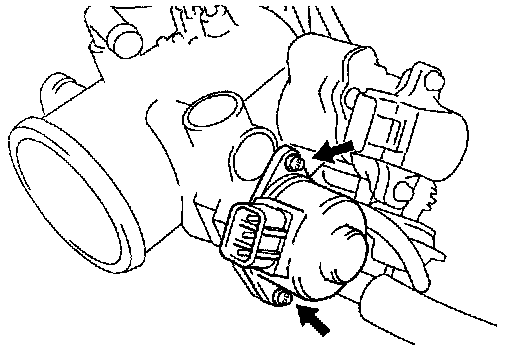

2. Remove IAC valve.




Remove the 2 screws, IAC valve and O-ring.

INSTALLATION HINT: Install the IAC valve with a new O-ring.

IDLE AIR CONTROL (IAC) VALVE INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
