Power Source (Current Flow Chart)
Power Source (Current Flow Chart)

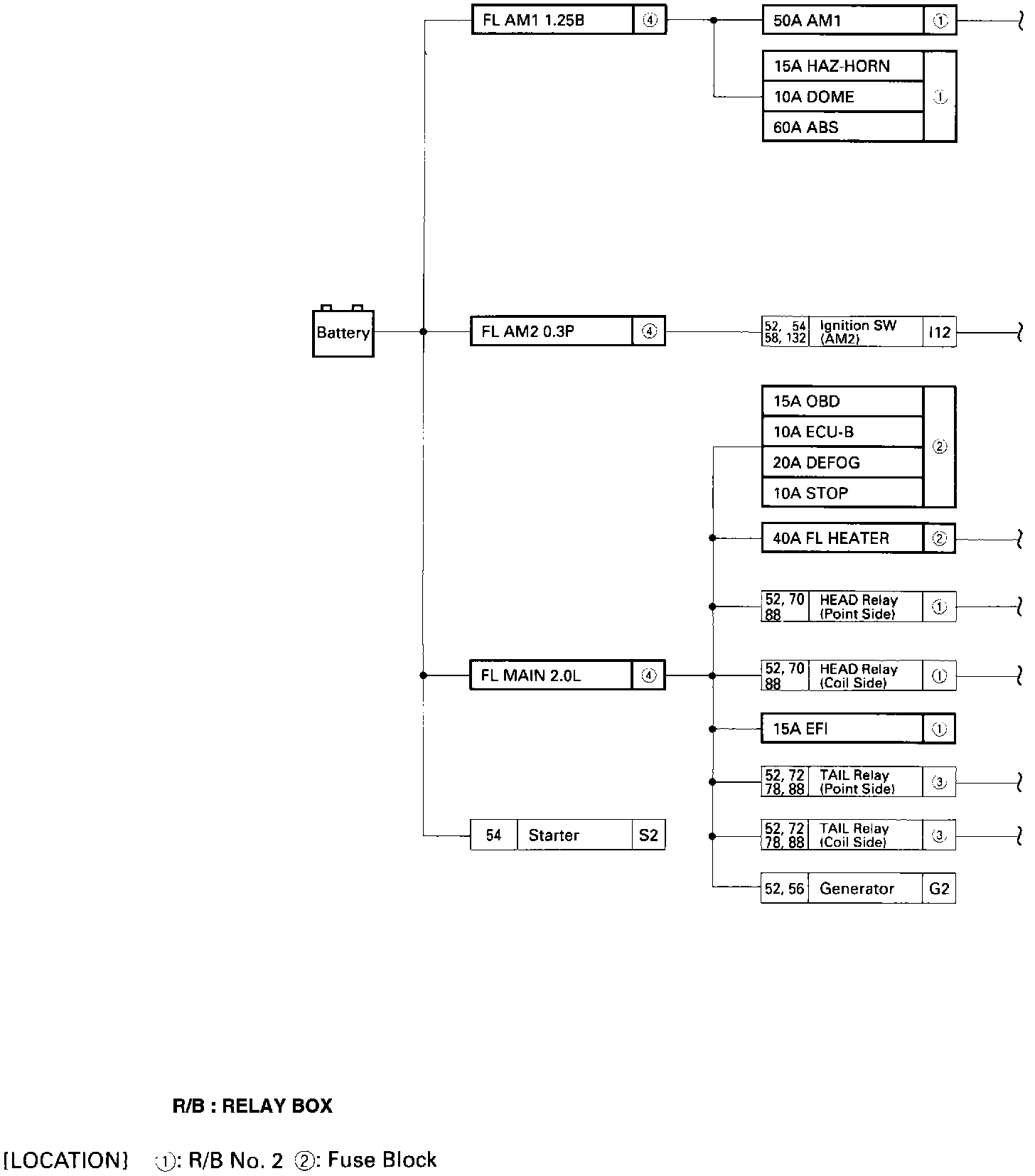

Power Source (Current Flow Chart) (Part 1 Of 2):

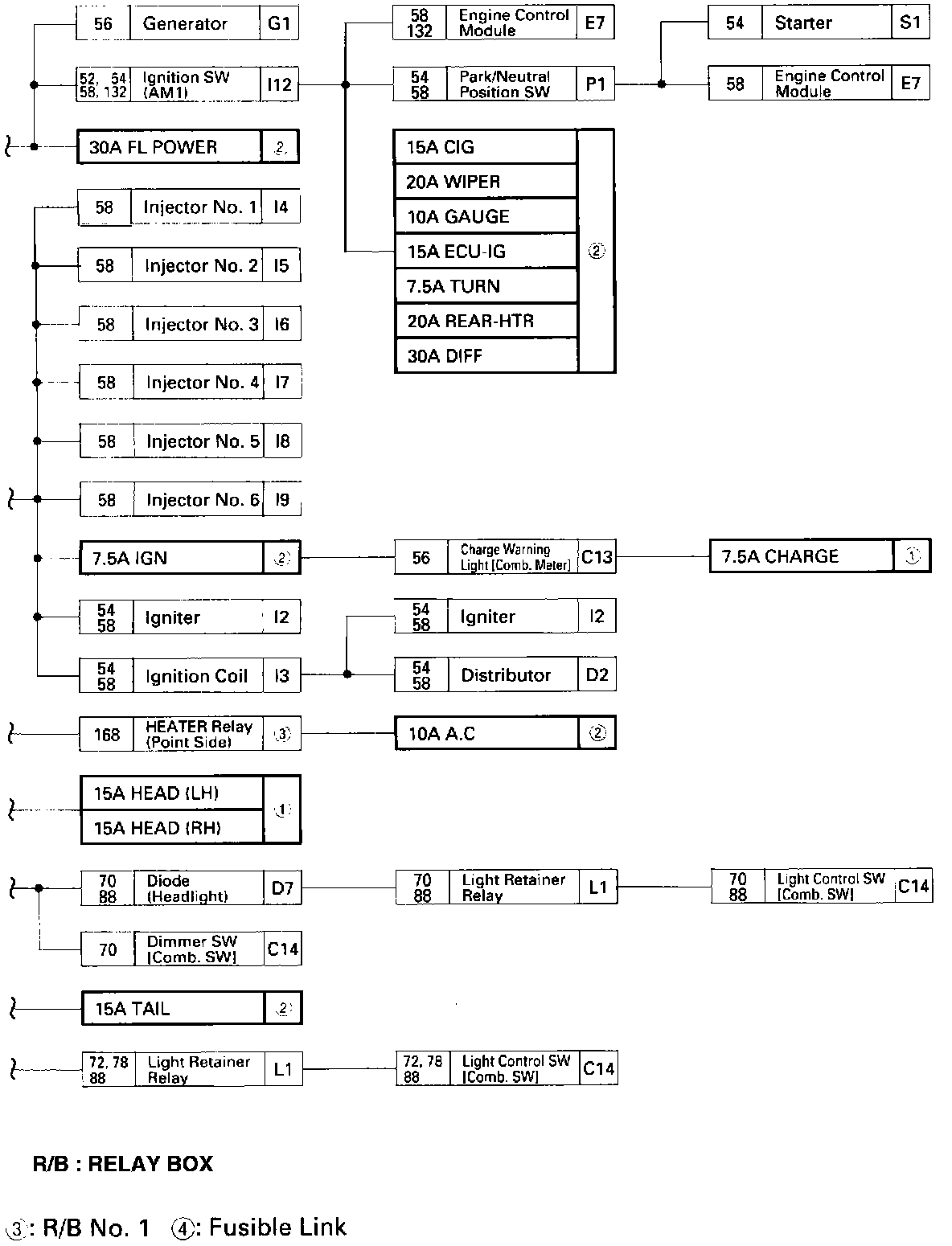

Power Source (Current Flow Chart) (Part 2 Of 2):
