Combination Switch: Testing and Inspection

COMBINATION SWITCH INSPECTION

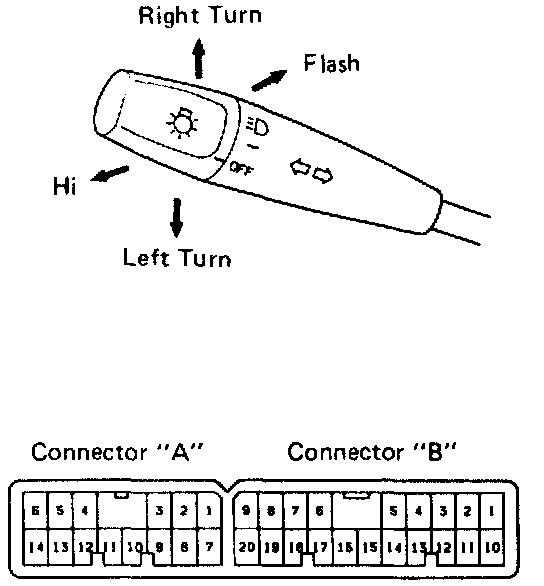

Combination Switch:

Reference:

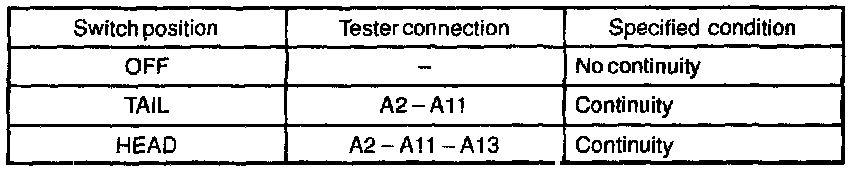

INSPECT LIGHT CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

Combination Switch:

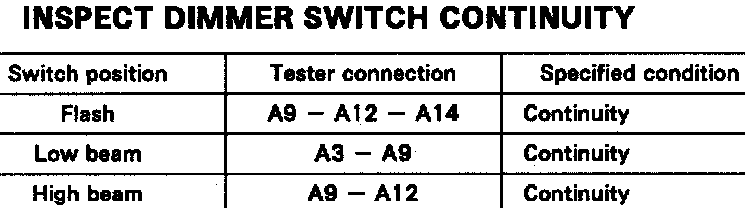

INSPECT HEADLIGHT DIMMER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

Combination Switch:

Reference:

INSPECT TURN SIGNAL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
