Dome Lamp: Testing and Inspection

ROOM LIGHT INSPECTION







INSPECT LIGHT ASSEMBLY
1. Disconnect the connector from room light assembly.

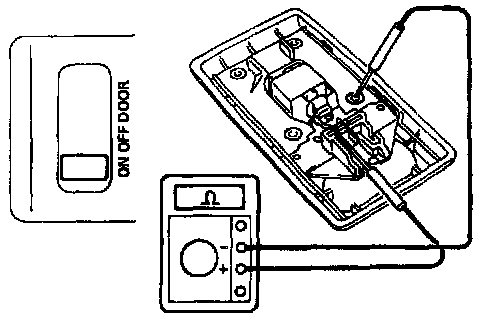

2. Turn the room light switch ON, and check that there is continuity between terminal 2 and body ground.

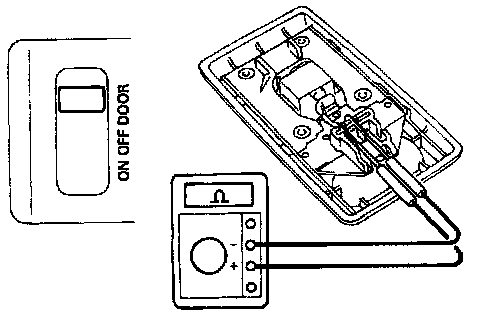

3. Turn the room light switch DOOR, and check that there is continuity between terminal 1 and 2.

If operation is not as specified, replace the switch.
