Refrigerant Volume

1. RUN ENGINE AT APPROX. 1,500 RPM

2. OPERATE A/C AT MAXIMUM COOLING FOR A FEW MINUTES

3. INSPECT AMOUNT OF REFRIGERANT

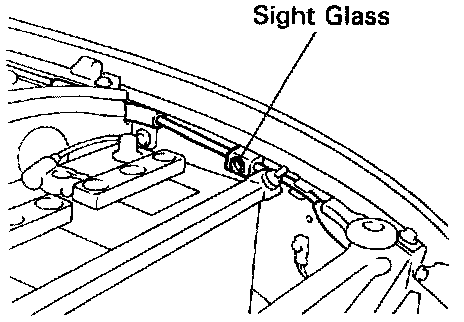

Observe the sight glass on the liquid tube.

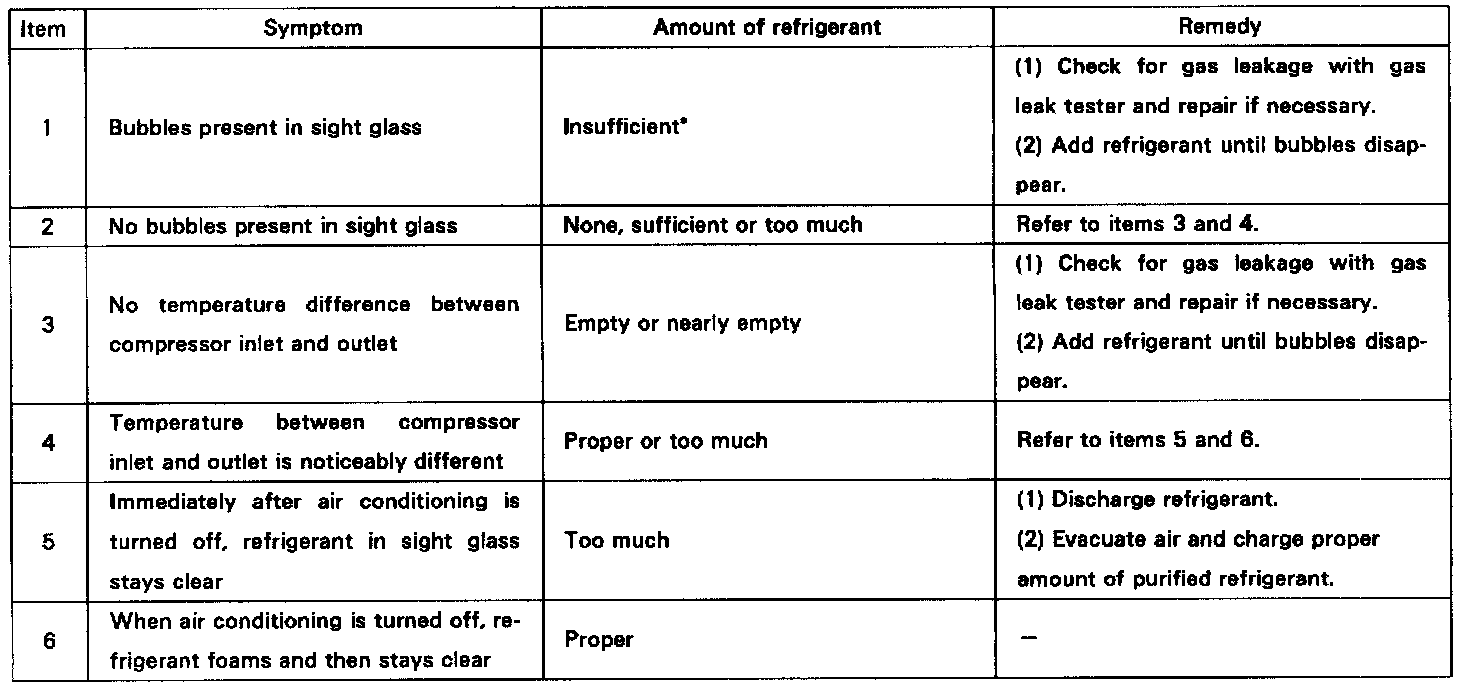

Refrigerant Volume:

* Bubbles in the sight glass with ambient temperatures higher than usual can be considered normal if cooling is sufficient.

REFRIGERANT CHARGE VOLUME
Specified amount:
850 ± 50g (29.98 ± 1.76 oz.)
