Removal and Installation

COOLING UNIT REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

INSTALLATION HINT: Evacuate air from refrigeration system.

Discharging & Evacuating System
Charging the System
Leakage of Refrigerant

Charge system with refrigerant and inspect for leakage of refrigerant.

Specific amount:
850 ± 50g (29.98 ± 1.76 oz.)

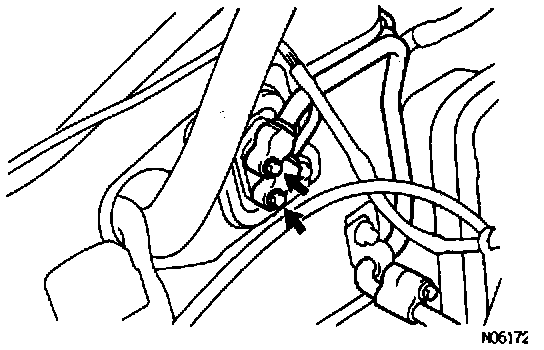

2. DISCONNECT SUCTION TUBE AND LIQUID TUBE FROM COOLING UNIT FITTING
Remove the 2 bolts and both tubes.

REMOVAL NOTE: Cap the open fitting immediately to keep moisture or dirt out of the system.

INSTALLATION HINT: Lubricate 2 new O-ring with compressor oil and install the tubes.

3. REMOVE GLOVE COMPARTMENT DOOR

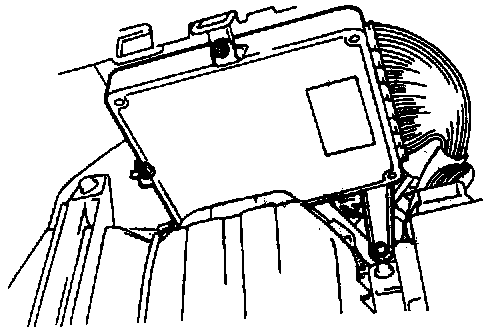

4. REMOVE ENGINE CONTROL MODULE







5. REMOVE COOLING UNIT
a. Disconnect the connectors.
b. Remove the 3 screws, 2 nuts and cooling unit.


COOLING UNIT INSTALLATION
Installation is in the reverse order of removal.
