Condenser HVAC: Service and Repair

CONDENSER REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

INSTALLATION HINT: Evacuate air from refrigeration system. Charge system with refrigerant and inspect for leakage of refrigerant.

Discharging & Evacuating System
Charging the System
Leakage of Refrigerant

Specified amount:
850 ± 50 g (29.98 ± 1.76 oz.)

2. REMOVE THESE PARTS:
a. Hood lock brace
b. Center brace

3. DISCONNECT DISCHARGE HOSE AND LIQUID TUBE

Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

REMOVAL NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

INSTALLATION HINT: Lubricate 2 new O-rings with compressor oil to compressor.

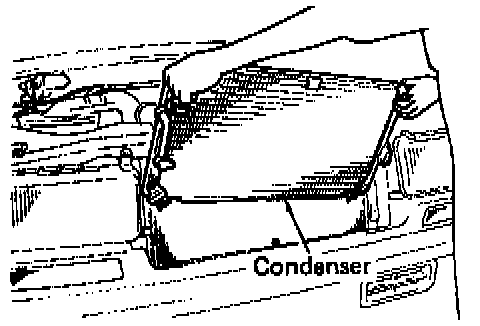

4. REMOVE CONDENSER
a. Remove 2 condenser mounting bolts.
b. Pull out the condenser between the radiator and the body.


INSTALLATION HINT: If condenser was replaced, add compressor oil to compressor.

Add 40 cc (1.4 fl.oz.)
Compressor oil:
ND-OIL 8 or equivalent


INSTALLATION
Installation is in the reverse order of removal.
