Drive Belt Tension/Replacement

DRIVE BELT REMOVAL







REMOVE DRIVE BELT

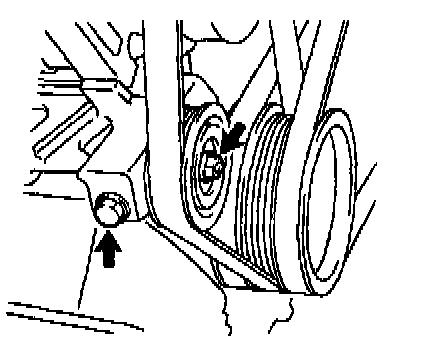

Loosen the idler pulley lock nut and adjusting bolt, remove the drive belt.

DRIVE BELT INSTALLATION
Installation is in the reverse order of removal.
