Front Blower Motor

FRONT BLOWER MOTOR REMOVAL

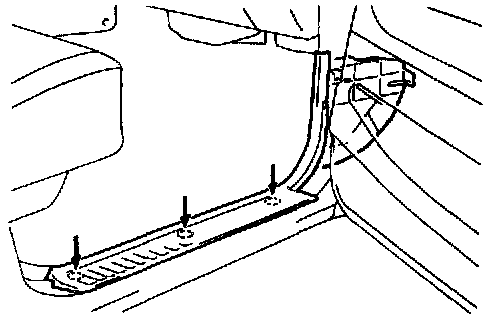

1. REMOVE RH SCUFF PLATE

2. REMOVE BLOWER MOTOR

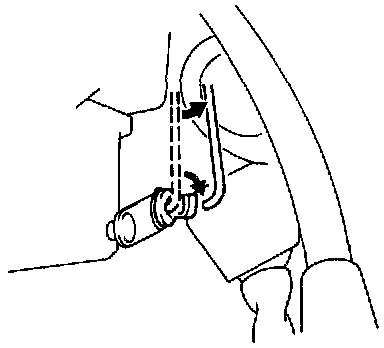

a. Disconnect the link from the lower cover.

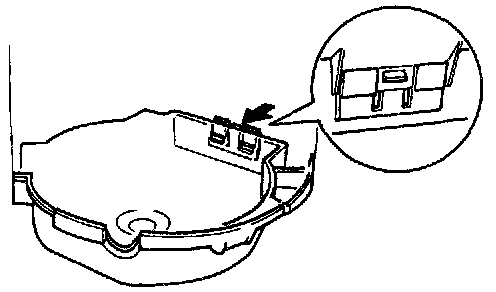

b. Remove the 2 screws, then remove the lower cover while pushing the locking protrusion, as shown.
c. Disconnect the connector from the blower motor.
d. Remove the 3 screws and the blower motor.

BLOWER MOTOR INSTALLATION
Installation is in the reverse order of removal.
