Blower Unit

BLOWER UNIT REMOVAL

1. REMOVE INSTRUMENT PANEL AND REINFORCEMENT

2. REMOVE COOLING UNIT
a. Disconnect the connectors.
b. Remove the 3 screws, 2 nuts and cooling unit.

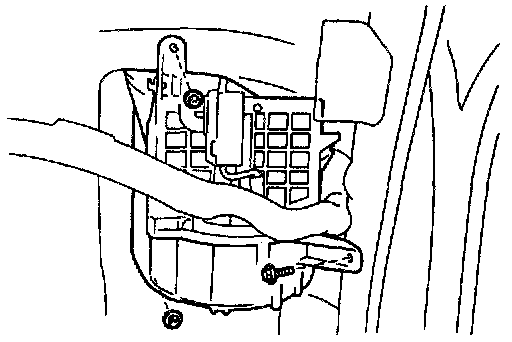

3. REMOVE BLOWER UNIT
a. Disconnect the connectors.
b. Remove the bolt and 2 nuts. then remove the blower unit.

BLOWER UNIT INSTALLATION
Installation is in the reverse order of removal.
