Rear Blower Resistor

BLOWER RESISTOR REMOVAL

1. REMOVE FRONT RH SEAT

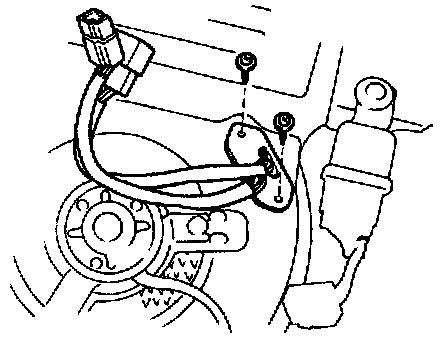

2. REMOVE BLOWER RESISTOR
a. Disconnect the 2 connectors from the blower resistor.
b. Remove the 2 screws and the blower resistor.

BLOWER RESISTOR INSTALLATION
Installation is in the reverse order of removal.
