Front Blower Resistor

BLOWER RESISTOR REMOVAL

1. REMOVE GLOVE COMPARTMENT DOOR

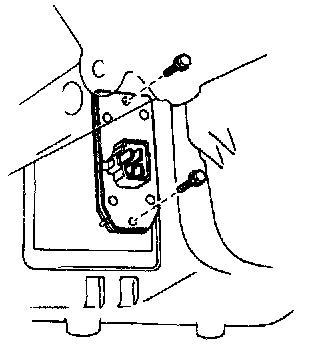

2. REMOVE BLOWER RESISTOR
a. Disconnect connector from the blower resistor.
b. Remove 2 screws and the blower resistor.

BLOWER RESISTOR INSTALLATION
Installation is in the reverse order of removal.
