Toyota Truck
>>
1997
>>
Landcruiser AWD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor Relay
>>
Testing and Inspection
>>
Rear Heater Relay
Rear Heater Relay

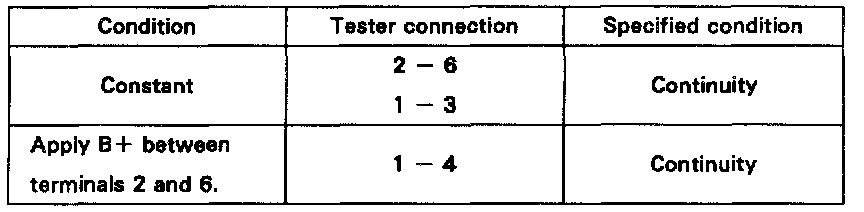

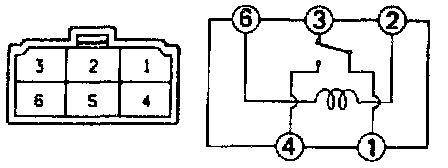

INSPECT REAR HEATER CONTINUITY
If continuity is not as specified, replace the relay.
