Home
>>
Toyota Truck
>>
1997
>>
Landcruiser AWD L6-4.5L (1FZ-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor Relay
>>
Testing and Inspection
>>
Heater Main Relay
Heater Main Relay

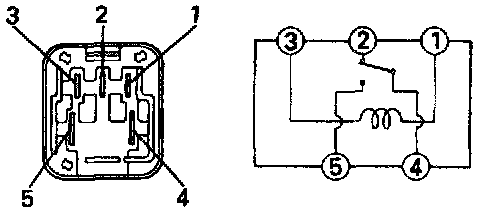

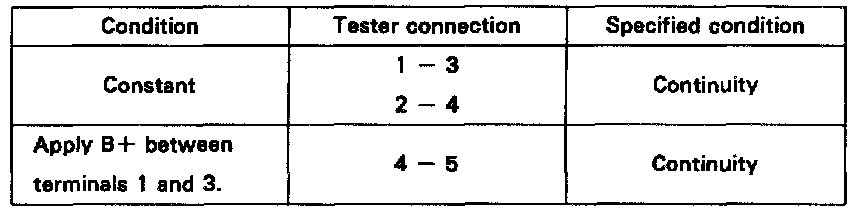

INSPECT HEATER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.
