Blower Motor Control Relay

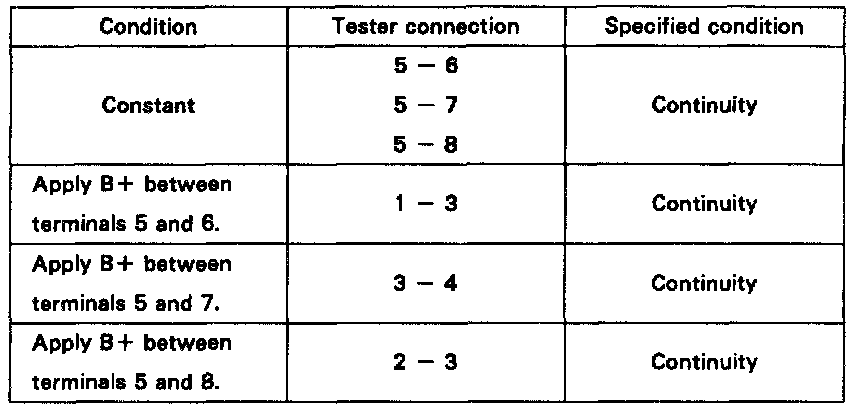

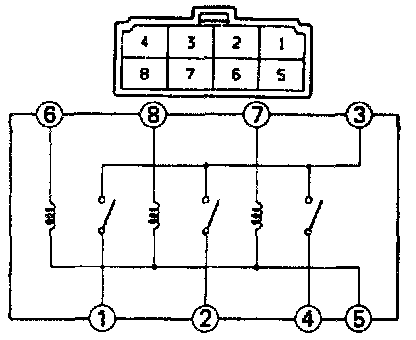

INSPECT BLOWER SPEED CONTROL RELAY CONTINUITY
If continuity is not as specified, replace the relay.
